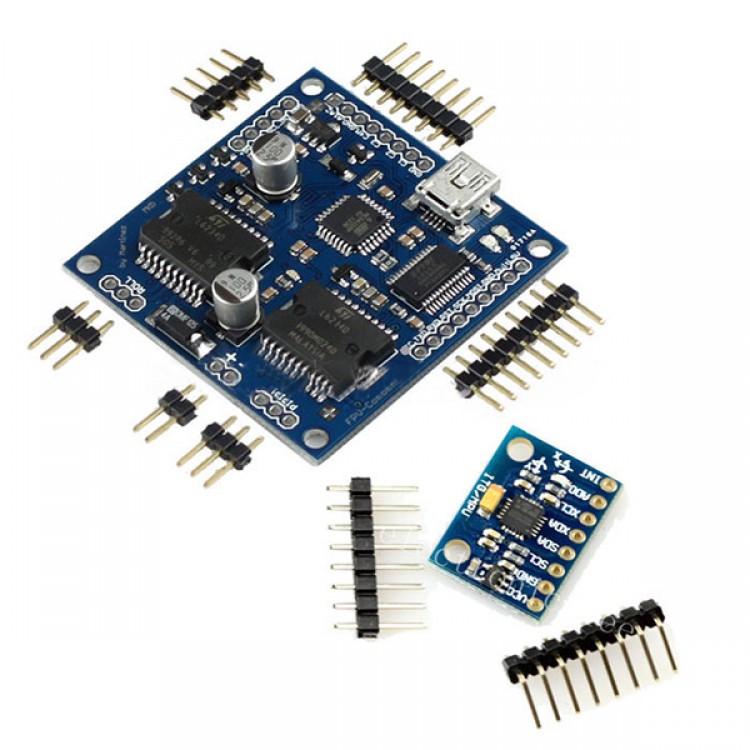

GY-YTV3 Gimbal Brushless Controller V3 w/ MPU6050 3 Axis Gyroscope Accelerometer Module



Item Description
- This controller was designed by "Martinez" of FPV-Comunity.de with the help of others. The current version of the controller is version 3.0,They normaly come with the bootloader on the chip and you just need to upload the firmware via USB.

Features:
- Gimbal Brushless Controller V3:
- USB connector (no FTDI needed)
- Stabilized VBUS (USB port)

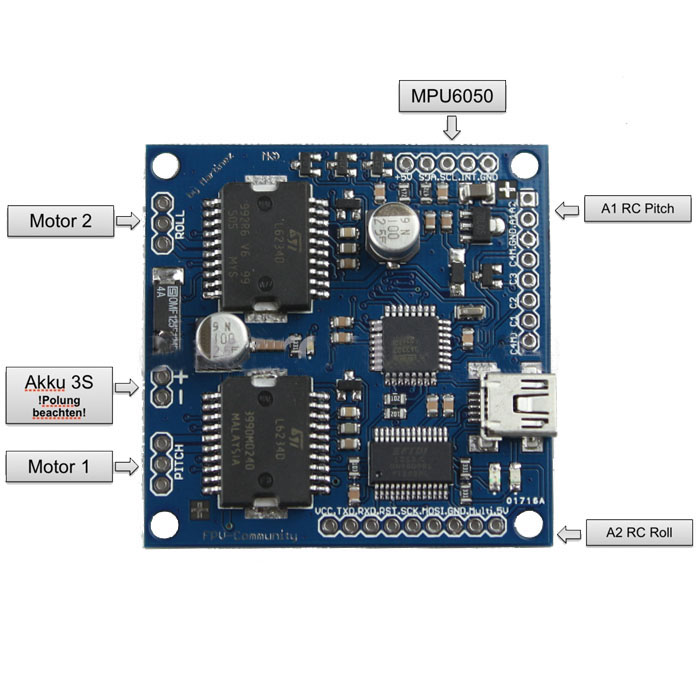

- Pin layout optimized GND, A1 and A2 GND, multi-port, 5V
- L6234 brushless motor driver
- 2 outputs for brushless motors
- 4 receiver inputs
- 6 analog inputs
- Serial port available
- Power LED (blue)
- Small LEDs on the USB
- Dimensions 50 mm x 50 mm
- Standard MK style mounting holes 45 mm x 45 mm
- 2 instead of 4 glass diodes SOT23
- 5V better stabilized
- Shifter lever on the I2C Bus (3.3V to 5V)
- Pull reduced (for better edges)

MPU6050 3 Axis gyroscope + accelerometer module:
- Chip: MPU-6050
- Power supply: 3-5V
- Gyroscope range: + 250 500 1000 2000 °/ s
- Acceleration range: ± 2 ± 4 ± 8 ± 16 g
- Communication: Standard IIC communication agreement
- Chip built-in 16 bit AD converter, 16 bits of data output
- Pin Pitch:2.54 mm
- Size: 20.3mm x 15.6mm

Package including:
- 1pcs Gimbal Brushless Controller V3 + MPU-6050 3 Axis gyroscope + accelerometer module
