H264 Embedded 4CH Digital Video Recorder System SD-9604AD-A

Availability: Out Of Stock

  • Price:$94.65
  • Price in reward points: 947 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $92.76 $90.86 $88.02 $84.24 Contact US
Quantity:

You might like

  • $0.00
  • $0.00
  • $0.00

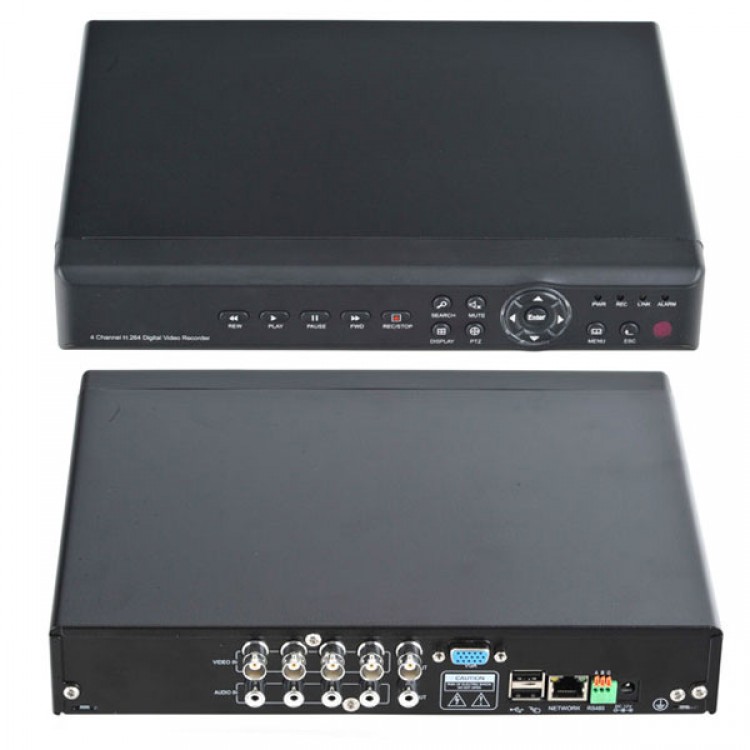

H264 4 CH Embedded Digital Video Recorder System SD-9604AD-A
Features:

- H.264 compression ensures better image quality and lower code stream
- Powerful H.264 SOC technics requires lower power consumption, a guarantee of robustness of system
- Windows style GUI, controle by mouse\panel and remote control, easy to use
- Dual stream supported. User can adjust network stream to fit bandwidth while recording quality not changed
- 1/4/8CH synchronous playback
- Bidirectional talk
- Search by time or events(alarm, motion, sensor)
- Complete network function, support remote control via IE or CMS, maximum 8 users online
- Support Mobile\Android\Symbian\Iphone
- Support 2 SATA hard disks
- Backup via network, USB, SATA burning
- Hardware watch dog
- User and log management, system status report
- SDK is available, to integrate with other applications
- 4ch standalone DVR
- 200/240fps H.264 recording
- 8ch real-time recoding/palyback
- Mobile Phone Remote View
- Security system DVR Recorder

Specifications



  • Model

SD-9604AD-A

  • Operation System

Embedded Linux Operation System

  • System Resources

8ch CIF real-time recording and playback, 8ch CIF/QCIF sub-stream network transmission.

  • Operation Interface

GUI,support mouse,panel,remote control operation

  • Video Standard

PAL,NTSC

  • Video Compression

H.264

  • Audio Compression

ADPCM

  • Recording Mode

Manual,Timing,Alarm,Motion detection

  • Search Mode

By time,event,channel,log

  • Backup Mode

Network download,USB backup,SATA burning

  • Video Input

4 channel BNC

  • Video Output

1 channel BNC,1 channel VGA output

  • Audio Input

4 channel BNC

  • Audio Output

1 channel BNC

  • VOIP

1 channel VOIP(Audio IN2)

  • Live Video Resolution

PAL-720x576(D1).NTSC-720x480(D1)

  • Playback Resolution

PAL-352x288(CIF).NTSC-352x240(CIF)

  • Image Control

1-6 level are selectable

  • Motion Detection

Each channel can set detection zones and multilevel sensitivity

  • Video Display

multiple screen display 1 / 4 / 8

  • Recording Speed

PAL-25 f/s(Adjustable). NTSC-30 f/s(Adjustable)

  • Recording Storage

Local HD,Network

  • Local Playback

4 channel real-time playback

  • Alarm Input

4 switch Value Input

  • Alarm Output

1 Switch Value Output, support E-mail Alarm

  • PTZ Control

RS485

  • HD Interface

2 SATA Ports

  • Network Interface

RJ45 10M/100M Adaptable Ethernet Connection

  • USB Interface

2 USB2.0 High-speed Ports

  • Power Supply

12V 5A Power
