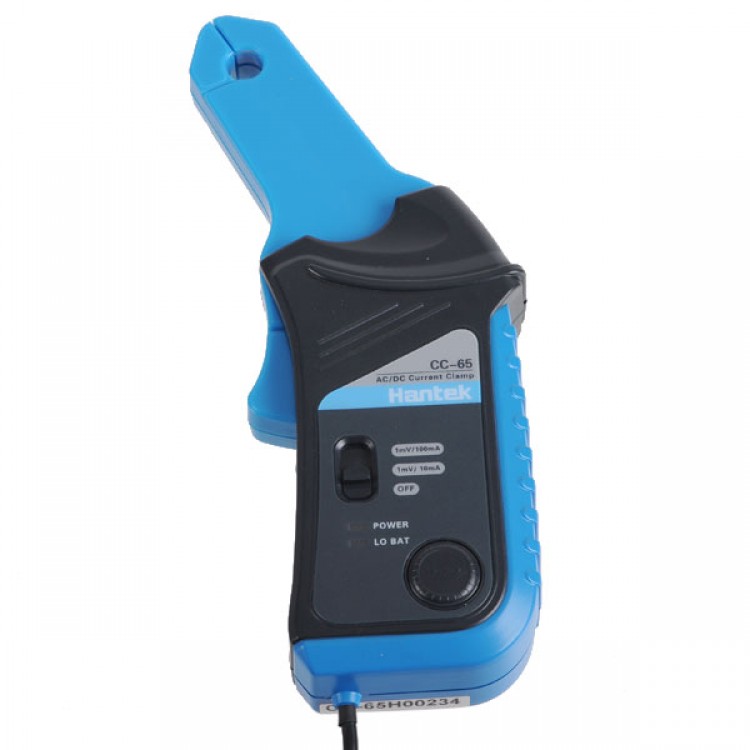

Hantek CC-65 AC/DC Current Clamp Digital Multimeter with BNC Connector

Availability: Out Of Stock

  • Price:$61.23
  • Price in reward points: 612 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.01 $58.78 $56.94 $54.49 Contact US
Quantity:

Hantek CC-65 AC/DC Current Clamp Digital Multimeter with BNC Connector
Descriptions:

- The Hantek CC-65 acts as a transducer, allowing your multimeter to measure current data and enabling your oscilloscope to measure the current waveforms. It linearly transforms the AC or DC current to AC or DC voltage. It can be connected to an oscilloscope by a BNC type connector to observe the current waveforms, or by banana type connector to obtain the current data. This is the BNC connector version.

Applications:
- Power circuit measurement and malfunction analysis
- Motor drive of frequency converter (or other electronics) measurement
- Power electronics equipments measurement

Specfications:

DCA range 1 mV/10 mA ±(1.5% ±5mA) 10mA ~ 20A
1mV/100mA ±(2% ±20mA) 100mA ~ 40A
±(4% ±0.3A) 40A ~ 65A
ACA range 1mV/10mA ±(2% ±30mA) 100mA ~ 10A (40Hz ~ 2KHz)
±(4% ±30mA) 100mA ~ 10A (2KHz ~ 10KHz)
±(6% ±30mA) 100mA ~ 10A (10KHz ~ 20KHz)
±(8% ±30mA) 10A ~ 15A (40Hz ~ 20KHz)
1mV/100mA ±(2% ±30mA) 200mA ~ 40A (40Hz ~ 1KHz)
±(4% ±30mA) 200mA ~ 40A (1KHz ~ 2KHz)
±(6% ±30mA) 200mA ~ 40A (3KHz ~ 5KHz)
±(8% ±0.3A) 40A ~ 65A (40Hz ~ 20KHz)

Collected
Conductor Size

  9mm maximum
Low Battery
Indicator
  red LED lighting
Operating
Temperature
  0°C to 50°C, 70% RH
Storage
Temperature
  -20°C to +70°C, 80% RH
Battery Type   9V DC, NEDA 1604, 6F22, 0006P
Battery Life   100 hours typical with alkaline
Weight   250 g
Dimensions   195mm(H) x 70mm(W) x 33mm(D)
Output   Supplied with coil cable with straight banana plug or BNC plug
