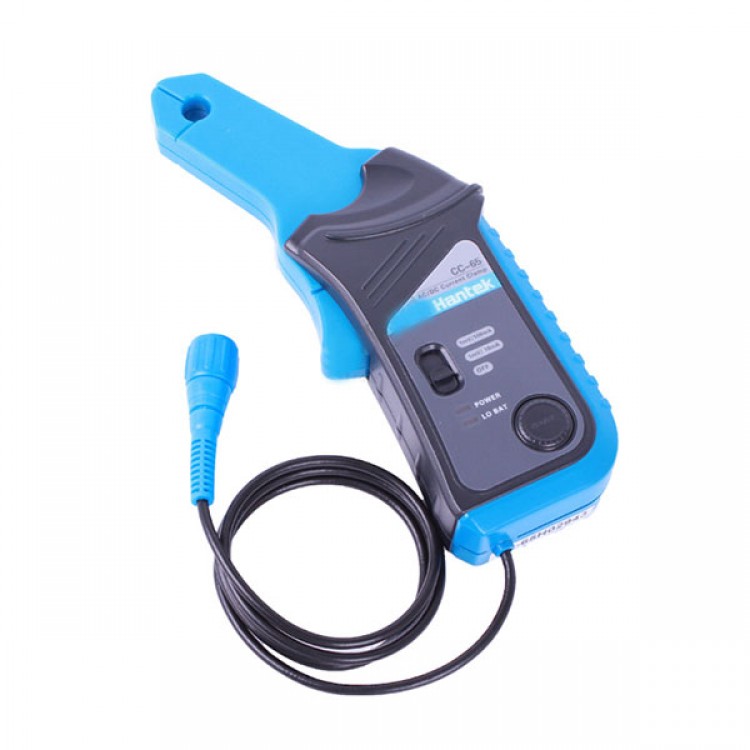

Hantek CC-65 AC/DC Current Clamp Digital Multimeter with BNC Connector
Descriptions:
- The Hantek CC-65 acts as a transducer, allowing your multimeter to measure current data and enabling your oscilloscope to measure the current waveforms. It linearly transforms the AC or DC current to AC or DC voltage. It can be connected to an oscilloscope by a BNC type connector to observe the current waveforms, or by banana type connector to obtain the current data. This is the BNC connector version.
Specifications:
| DCA range | 1 mV/10 mA | ±(1.5% ±5mA) 10mA ~ 20A |
|---|---|---|
| 1mV/100mA | ±(2% ±20mA) 100mA ~ 40A | |
| ±(4% ±0.3A) 40A ~ 65A | ||
| ACA range | 1mV/10mA | ±(2% ±30mA) 100mA ~ 10A (40Hz ~ 2KHz) |
| ±(4% ±30mA) 100mA ~ 10A (2KHz ~ 10KHz) | ||
| ±(6% ±30mA) 100mA ~ 10A (10KHz ~ 20KHz) | ||
| ±(8% ±30mA) 10A ~ 15A (40Hz ~ 20KHz) | ||
| 1mV/100mA | ±(2% ±30mA) 200mA ~ 40A (40Hz ~ 1KHz) | |
| ±(4% ±30mA) 200mA ~ 40A (1KHz ~ 2KHz) | ||
| ±(6% ±30mA) 200mA ~ 40A (3KHz ~ 5KHz) | ||
| ±(8% ±0.3A) 40A ~ 65A (40Hz ~ 20KHz) | ||
Collected |
9mm maximum | |
|
Low Battery Indicator |
red LED lighting | |
|
Operating Temperature |
0°C to 50°C, 70% RH | |
|
Storage Temperature |
-20°C to +70°C, 80% RH | |
| Battery Type | 9V DC, NEDA 1604, 6F22, 0006P | |
| Battery Life | 100 hours typical with alkaline | |
| Weight | 250 g | |
| Dimensions | 195mm(H) x 70mm(W) x 33mm(D) | |
| Output | Supplied with coil cable with straight banana plug or BNC plug |
Applications:
- Power circuit measurement and malfunction analysis
- Motor drive of frequency converter (or other electronics) measurement
- Power electronics equipments measurement
