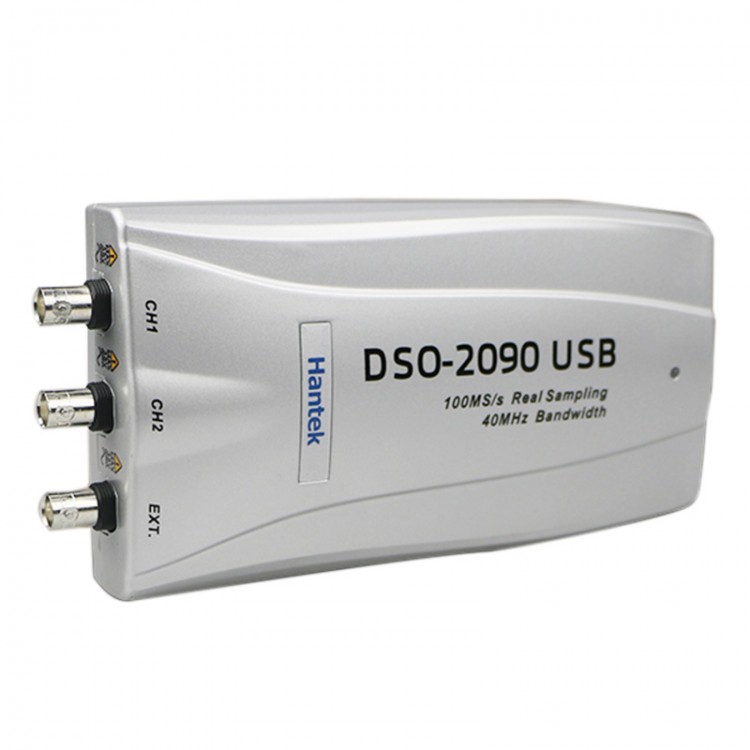

Hantek DSO2090 40MHz 100MSa/s Dual Channel PC USB Digital Storage Oscilloscope

Hantek DSO2090 40MHz 100MSa/s Dual Channel PC USB Digital Storage Oscilloscope

Description:
It is a 2 channel oscilloscope with stable performance and high accuracy. With 100MSa/s real-time sampling and 40MHz bandwidth.

Features:
- Professional digital storage oscilloscope with 100MSa/s real-time sampling and 40MHz bandwidth.
- With over 20 kinds of auto measurement functions, PASS/FAIL check function.
- Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Waveform data can be saved in the excel, bmp, jpg format.
- USB 2.0 interface, no external power source required, easy to use.
- FFT spectral analysis function.
- Suitable for PC, product line maintenance or technical application.
- Operating system: Win7, WinNT, WinXP, Win8, Vista.
- One computer can connect with several oscilloscope at the same time.

Specifications:
- Channel: 2 Channel
- Bandwidth: 40MHz
- Sampling Rat: Max.100MSa/s
- Storage Depth: 10k-32kb/ch
- Vertical Resolution: 8bit
- Impedance: 1MΩ 25pF
- Coupling: AC/DC/GND
- Voltage Range: 10mV-5V, 9steps
- Vertical Accuracy: ±3%
- Timebase Range: 4ns-1h, 38steps
- Vertical Adjustable: Yes
- Input Protection: Diode Clamping
- X-Y: Yes
- Horizontal Mode: Auto, Normal and Single
- Trigger Slope: +/-
- Trigger Level Adjustable: Yes
- Trigger Source: CH1, CH2, EXT
- Pre Trigger: 0-100%
- Sampling Selection: Yes
- Waveform Display: Port/Line, Average, Persistence, Intensity
- Network: Open/Close
- Math: FFT, Invert, Addition, Subtraction, Multiplication, Division
- Cursor Display: Frequency, Voltage
- Item Size: 18.5 * 10 * 3cm / 7.3 * 3.9 * 1.2in
- Item Weight: 289g / 10.2oz

Package List:
- 1 * Digital Oscilloscope
- 1 * USB Cable
- 1 * CD
