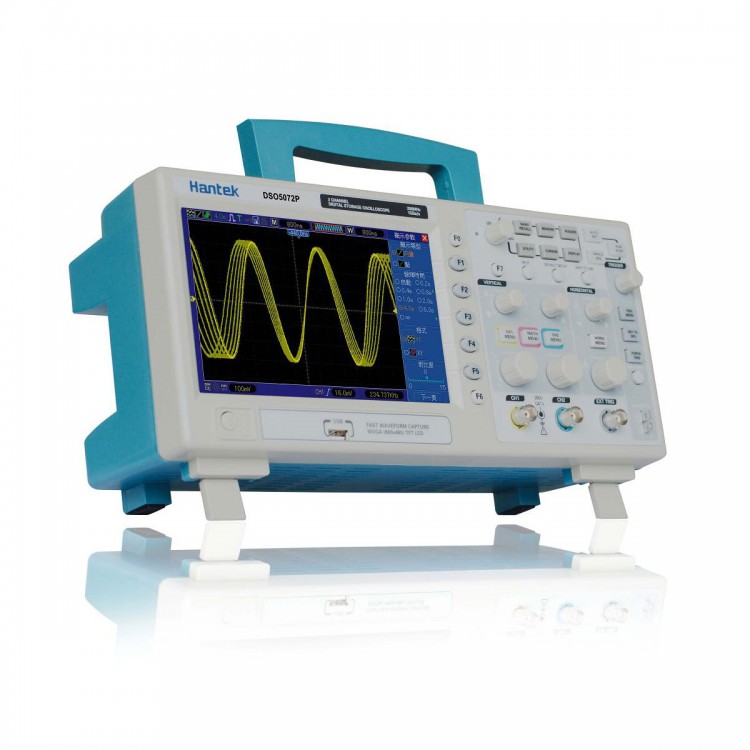

Hantek DSO5072P Digital Storage Oscilloscope 70MHz 2 Channel 1GSa/s 7inch TFT LCD 24K USB

Features:

- 70MHz bandwidths
- 1GSa/s Real Time sample rate
- Large (7.0-inch) color display,WVGA(800x480)
- Record length up to 40K
- Trigger mode: edge/pulse width/line selectable video/slop/overtime etc.
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- Provides software for PC real-time analysis

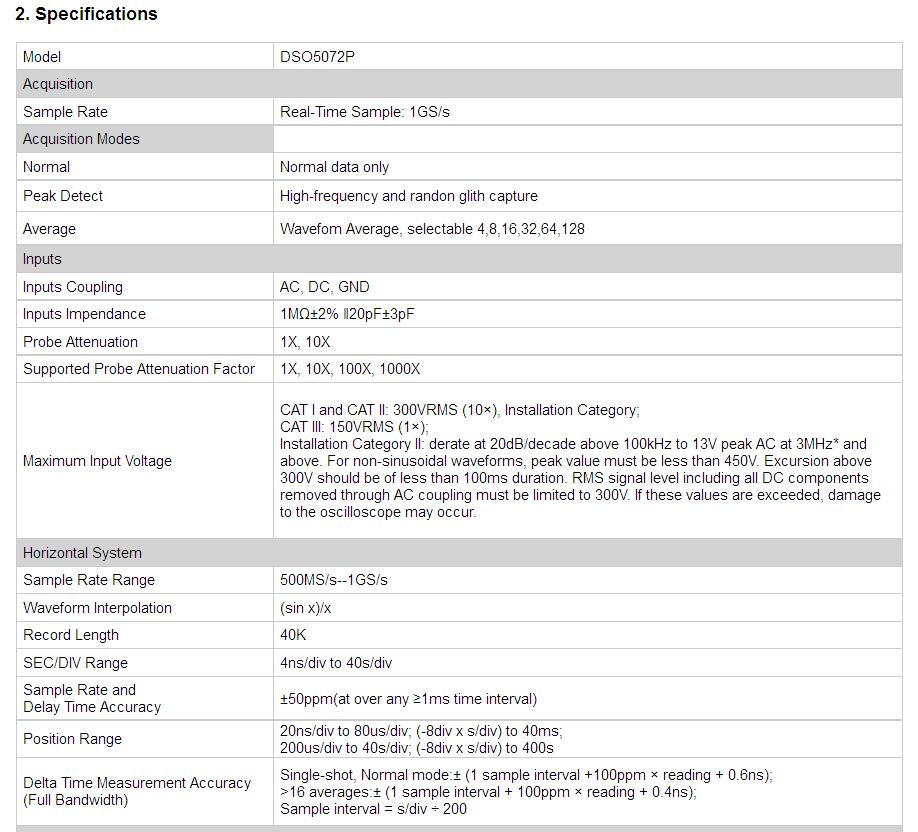

Specifications:

Model

DSO5072P

Bandwidth

70MHz

Channel

2

Real-Time Sample

1GSa/s

Equivalent Sample

25GSa/s

Memory Depth

40K

Rise Time

5ns

Time Base Accuracy

±50ppm

Time Base Range

8ns/div-40s/div

Input Impendance

 1MΩ

VOLTS/DIV Range

2mV/div~5V/div

A/D Converter

8 bit

Position Range

±50V(5V/div), ±40V(2V/div~500mV/div),& nbsp;
±2V(200mV/div~50mV/div),±400mV(20mV/div~2mV/div)< /font>

DC Gain Accuracy

±3% for Normal or Average acquisition mode, 5V/div to 10mV/div;
±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div

Bandwidth Limit

20MHz

Trigger Types

Edge, Video, Pulse, Slope, Over time, Alternative

Trigger Source

CH1, CH2, EXT, EXT/5, AC Line

Math

+,-,x,÷,FFT

Cursor Measurement

Voltage difference between cursors: △V;
Time difference between cursors: △T;
Reciprocal of △T in Hertz (1/ΔT);

Auto Measuerment

Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum,

Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise,

Delay1-2Fall, +Duty, -Duty, Vbase, Vtop,Vmid, Vamp, Overshoot,

Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot,

BWIDTH,FRF

Display

7"TFT 16K Color LCD, 800*480 dots

Size

313mm x 108mm x 142mm

Weight

2.08KG

Standard Probe

PP90



Package included:
- 1 x DSO5072P Digital Storage Oscilloscope
- 2 x Probe
- 1 x USB Cable
- 1 x Power Cord
- 1 x CD( Mannual,etc.)
