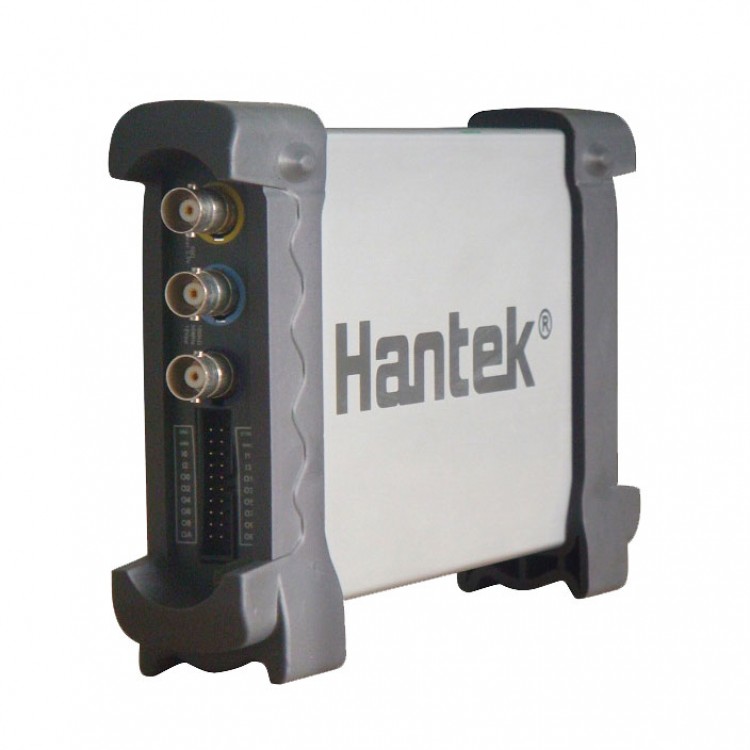

Hantek1025G PC USB Function Arbitrary Waveform Generator 25MHz Wave 200MSa/s DDS USBXITM Interface

Hantek1025G PC USB Function Arbitrary Waveform Generator 25MHz Wave 200MSa/s DDS USBXITM Interface

Description:
- Cost-effectiveness; PC USB Function/Arbitrary Waveform Generator.
- Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
- Plug & Play USB interface, no external power source required; Similar operation interface to benchtop waveform generators, easy to use.
- It can be used disengaging the computer. Simulation of sensors and Real Word Signals. It will produce the needed arbitrary waveform signals when power on.
- 200MSa/s sample rate, 12 bits of vertical resolution; 25Mz arbitrary waveform output. (Sine wave up to 75 MHz).
- One computer can be linked with several HANTEK1025G to expand Multi-channels.
- 50 MHz Frequency Counter.
- Programmable Pattern Generator.
- Standard USBXITM interface, easyly inserts into USBXITM housing to make up a combination instrument.
- Support System: Win 7, Windows NT, Windows 2000, Windows XP

Specification:
- Wave frequency: DC~25MHz
- DAC clock : 2K~200MHz adjustable
- Channels: 1CH waveform output
- Waveform Length: 4KSa
- Vertical Resolution: 12 bit
- Frequency stabilization : <30ppm
- Amplitude : ±3.5V Max.
- Output impedance: 50 Ω
- Output  current: 50mA Ipeak=50mA
- System Bandwidth : 25M
- Wave distortion: -50dBc(1KHz),  -40dBc(10KHz)
- Frequency area : DC~50MHz
- Input Amplitude : 400mVpp~18Vpp
- Coupling: DC
- Frequency precision: ±Time Base Error ±1 Count
- Input impedance: > 100KΩ
- Digit: 12 Bits Pattern Generator and 6Bit digital In
- Type: LVCMOS
- Temperature: 0~70 centigrade
- Humidity : 0~95%
- Weight: 0.5Kg

Package included:
- 1 x Arbitrary Waveform Generator
