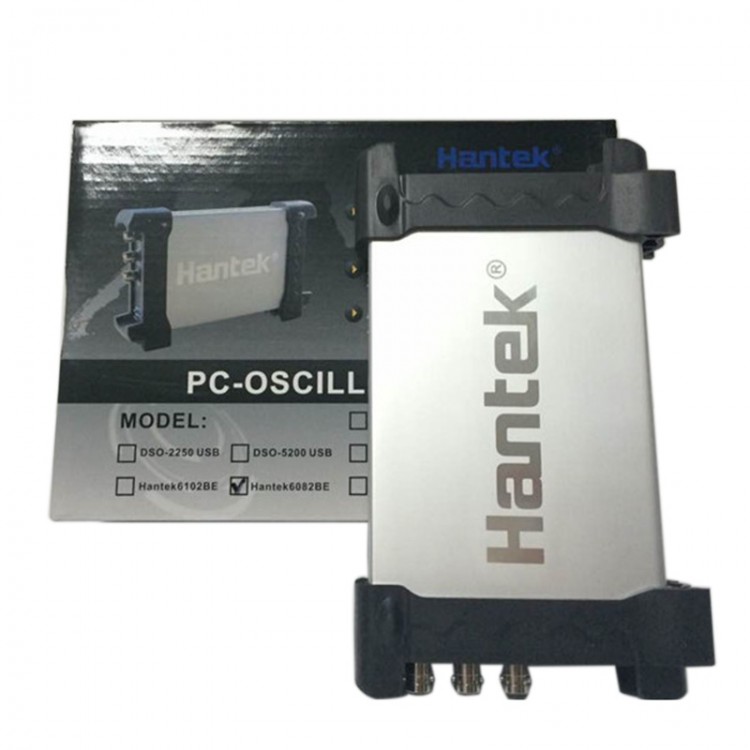

Hantek6082BE PC-Based USB Virtual Oscilloscope 80MHz 2CH 250MSa/s Anodised Aluminium Casing
Features:
- Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
- Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.
- USB2.0 interface, no external power source required, easy to use.
- Be suitable for notebook computer, product line maintenance,be used easily on business.
- Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
- High performance, 150MS/s real-time sampling, 50MHz Bandwidth,
- Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
- Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot.
- Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
- FFT
- One computer can connect many DSO, extend channel easily. Labview\VB\VC\Delphi\C++Builder Second Design instance.
Software:
Operating system: Windows 7,8, Windows NT, Windows 2000,Windows XP, VISTA
Second Design
Supply DEMO code(VC,CVI,VB,LABVIEW) and technical support.

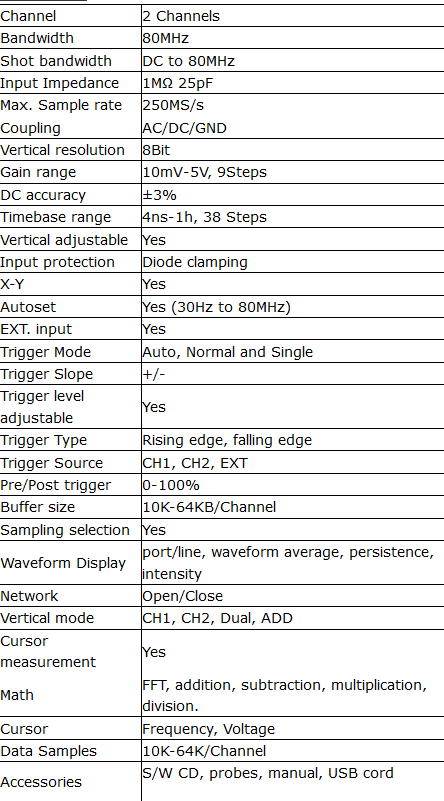

Specification:
