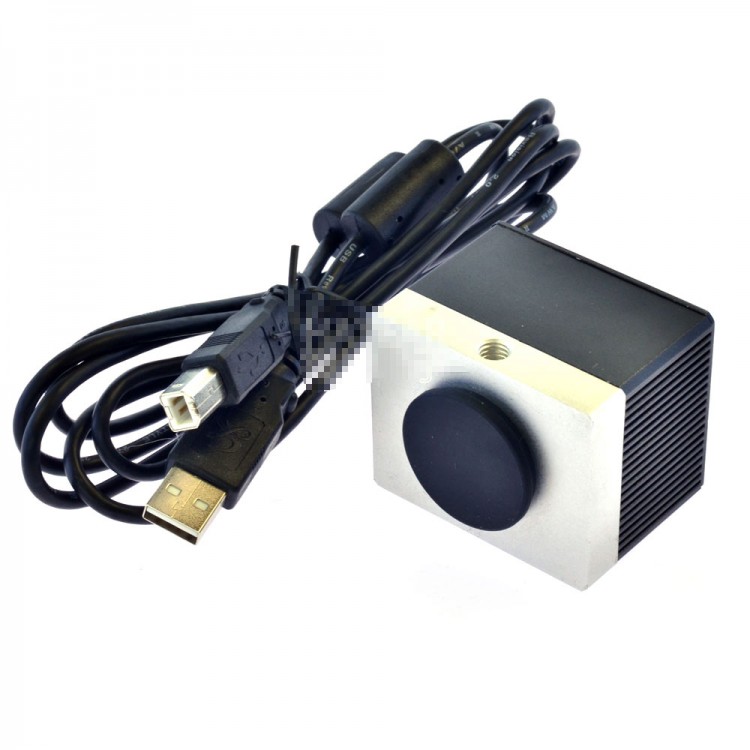

HD 5MP USB 2.0 Microscope Industrial Camera 2592x1944 1/2 Image Sensor
Features:
- High resolution image sensor, high definition;
- 1/2.0 inch progressive scan image sensor hardware, 5 million pixels;
- USB2.0 digital transmission interface, data transmission rate up to 480MPS;
- Brightness, contrast, saturation, sharpness and gamma value software adjustable
- Automatic white balance, automatic exposure;
- There is no need to arrange the driver, support Windows2000/XP2/Vista/Win7
- Maximum resolution 2592*1944
Technical parameters
- Image equipment 1/2.0 inch progressive scan image sensor, 5 million pixels
- Maximum resolution 2048*1536
- Pixel size 3.2 umm x 3.2 um
- Frame rate :12fps @ 2592*1944; 30 @640*480 FPS
- Shutter: electronic shutter
- Signal to noise ratio 43 dB
- Progressive scan mode
- Operating temperature : 0 degrees C~50 degrees C
- Sensitivity: 1.8V/lux-sec@550nm
- Spectral response: 400nm ~ 1000nm
- Data interface USB2.0 (480 Mbit / sec)
- Current is 200 mA
- White balance automatic / manual
- Automatic exposure control
- Software function image display, image acquisition, video, measurement, etc.
- Application of microscopic imaging, ordinary image acquisition, macro imaging etc.
Package List:
- 1 xMicroscope Camera
