HD USB Digital Microscope 500X Portable Electronic Magnifier Electron Microscope for Computer Jewellery Industry

Availability: In stock, usually dispatched in 1 business day

  • Price:$19.87
  • Price in reward points: 199 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.47 $19.08 $18.48 $17.68 Contact US
Quantity:

HD USB Digital Microscope 500X Portable Electronic Magnifier Electron Microscope for Computer Jewellery Industry

Specifications:
- Sensors: High quality chip
- Master control chip: DSP 16Bit
- Magnification:50X- 500X
- Camera / video: built in
- Auxiliary light source: 8 white LED light
- Static resolution: 640x480, 1600x1200 Max. (which can be adjusted according to the requirement).
- Digital zoom: 5 section
- Imaging distance: manual adjustable 0mm-40mm
- Image resolution: Standard 640*480
- Fixed base metal frame
- Optical disk: embedded drive, measurement software, manual
- System support: XP/VISTA WIN; WIN 732 and 64 bit
- Power supply: USB (DC 5V)
- Computer interface: USB 2 & USB 1.1 is compatible
- Movie frames: 30f/s Under 600 Brightness LUX
- Illumination control range: 0 ~ 30000LUX adjustable light source remote control switch)
-  Hardware requirements: Pentium 700M clocked at Hz or above; 1G hard disk CD ROM CD-ROM driver;64MB memory, X VGA Direct graphics card
-  Languages: Chinese (Simplified), Chinese (traditional), English, and other languages
- Color: black
- Appearance size 112 mm (length) 33 mm (outside diameter)
- Weight: about 380g

Safety warnings and precautions:
- Do not disassemble the product or to transform the internal structure, in order to avoid electrostatic breakdown.
- No alcohol and other organic solvents to clean the product.
- Do not fingers touch lens, so as not to scratch the surface. Do not put pressure on the lens on the lens.
- Avoid high temperature and humidity when outdoor to protect it from short circuit.
- This product is waterproof, should avoid rain and water.
- Storage: temperature: 0~ 40 deg C, relative humidity: 45%RH ~ 85%RH
- If the foreign body or water / liquid is into the digital microscope, please remove the USB line first. And send to repair center to repair.
- Measurement data accuracy software is only for reference

Hardware requirements:
- Windows 2000, XP, VISTA, WIN 7 operating system. IV 1.5G Pentium, Celeron, AMD or above CPU. 128MB memory.
- 150MB and above, the hard disk space (install drivers and application software) to support 16bit display card. CD-ROM driver. USB2.0 or USB1.1

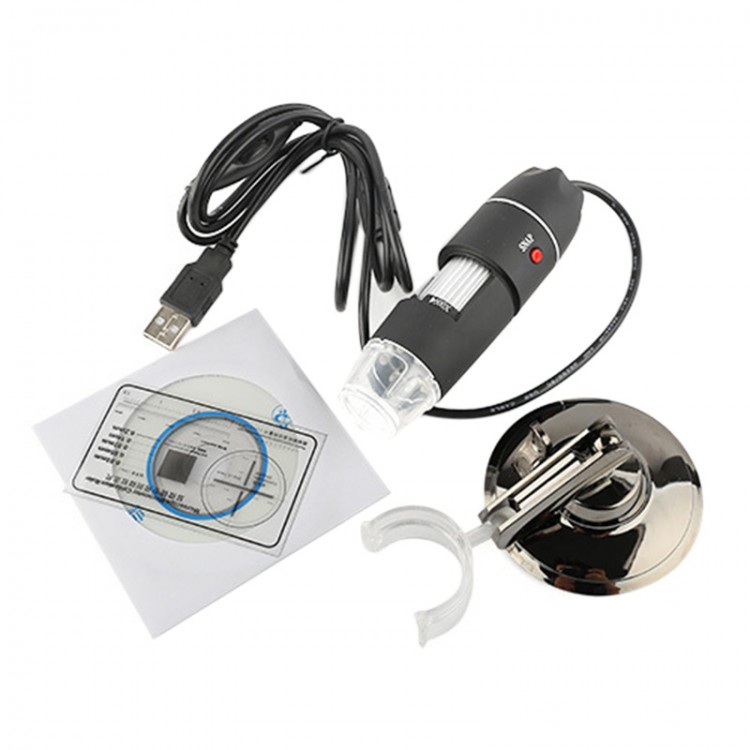

Package included:
- Digital microscope *1
- USB connection line (1.5m)*1
- Base*1
- optical disc (driver, measuring software, installation manual)
