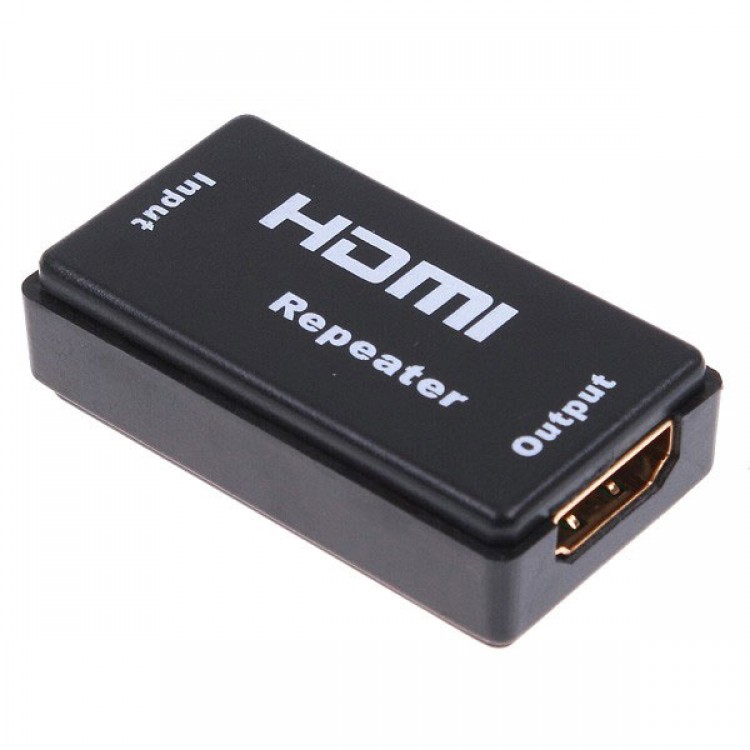

HDME Repeater Extender (HDMI 40m) HDV-R45
It regenerates the incoming HDMI signal by decoding and re-encoding it to a new standard HDMI signal so it can extend the transimission range without degradation.Extends 1080p/UXGA up to 40 meter transmission distance(lower resolution signal can be transimitted longer).No Power, Plug and play, easy to install.
Specifications
- HDMI is compliant with HDMI 1.3
- HDMI HDCP is compliant with HDCP 1.1
- Downward compatible with DVI 1.0 and HDCP 1.0
- Operation frequency: up to 165MHz
- Dimensions (W * H * D): 27 x 15 x 50mm
- Input/Output resolution:
PC: VGA@60Hz、VGA@72Hz、VGA@75Hz、VGA@85Hz、SVGA@60Hz、SVGA@72Hz、SVGA@75Hz、SVGA@85Hz、XGA@60Hz、XGA@70Hz、XGA@75Hz、XGA@85Hz、XGAi@87Hz、 SXGA@60Hz、SXGA@75Hz、SXGA@85Hz、UXGA@60Hz、1152@70Hz、1152@75Hz、1152@85Hz
HD: 480i@60Hz、576i@50Hz、480p@60Hz、576p@50Hz、720p@60Hz、720p@50Hz、1080i@60Hz、1080i@50Hz、1080p@60Hz、1080p@50Hz、1080p@30Hz、1080p@25Hz、1080p@24 Hz
Cable Distance Support:Over 40m with twisted-pair
Note: Different cable quality may affect- the maximum resolution and transmission distance.
