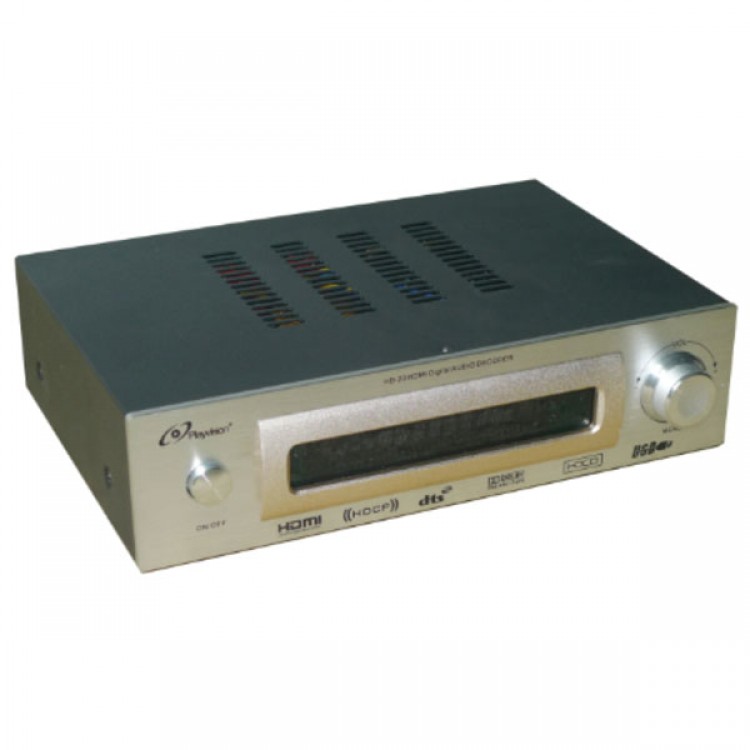

HDMI Digital Audio Decoder HDMI /DTS Decoder (DTS/AC3 Decoder) HDA-20

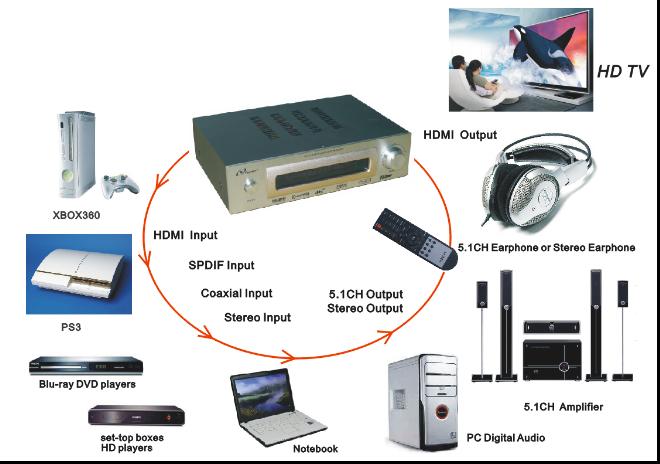

The HDMI digital audio decoder is used 24-bit audio DSP, 96KHz digital receivers, and 192KHz/24bit ADC , DAC. Support Dolby Digital AC-3 Dolby Pro Logic, DTS, PCM and other digital audio format source decode, a variety of sound field and the replay results of two listening modes, 5.1 analog audio output,  auto work with different amplifier and speakers to get different sound effects, easy to connect with entertainment devices  which with optical and coaxial digital signal and analog output signals.

Features

- High-grade aluminum alloy sheets, elegant black
- High school bass volume control, six-channel output volume control the size, respectively, left and right channel volume balance adjustment
- Easy switch the stereo and 5.1CH Output
- Automated channel test
- LED screen display and LED indicator brightness adjustment
- DTS / Dolby AC-3/PCM Automatic Identification
- With different audio DSP sound field
- Analog stereo input and analog 5.1CH output
- Adjust the volume using the encoder, feel better, meanwhile switch input channels feature
- Multiple input interface: HDMI,OPTI1, OPTI2, COX1, COX2, R / L AUX
- Standard RCA input and output interfaces, optical interfaces

Specifications

- Signal to Noise: 120db
- Degree of Separation: 85db
- Frequency Response: (20Hz ~ 20KHz) +/- 0.5db
- Max Output Volt: 2.2V
- Power Supply DC/12V 1A, (Outlay 110V~240V broadband convert DC12V Power)
- Dimension: 200x125x45mm
