HDMI Over Single Coax Extender (RG-6U cables 120M) HDV-S003

HDMI Over Single Coax Extender (RG-6U cables 120M) HDV-S003


The HDMI Over Single Coax Extender sends HDMI signals Over just one 75Ohm Coaxial cable -- up to100M away. The HDMI Over Single Coax Extender supports HDMI 1.2 and HDMI 1.3 with features such as Deep Color and 1080p.
By using standard and widely available 75Ohm RG-6U cables, the HDMI Over Single Coax Extender makes HDMI signal extensions to be easier than heavy and expensive copper cable also more robust than optical fiber.

Applications

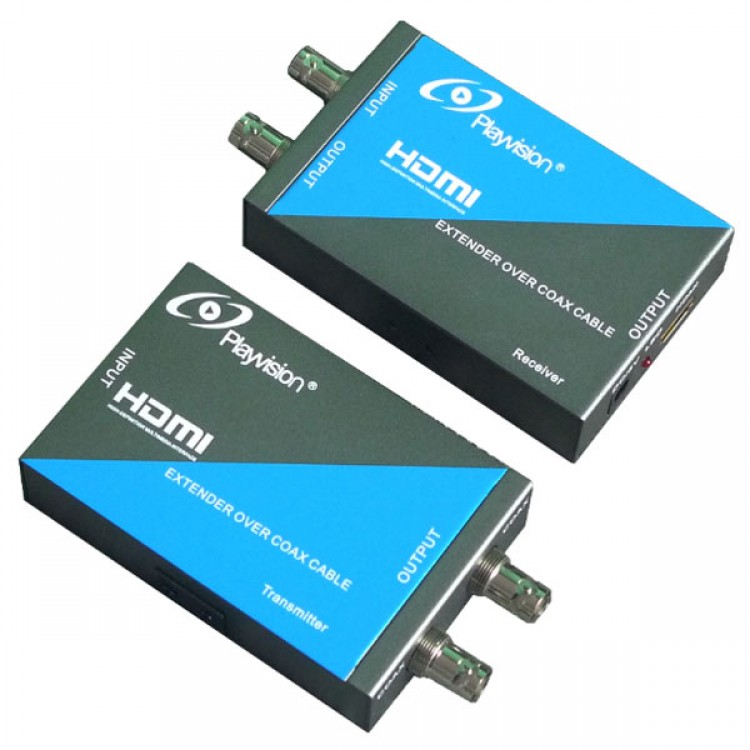

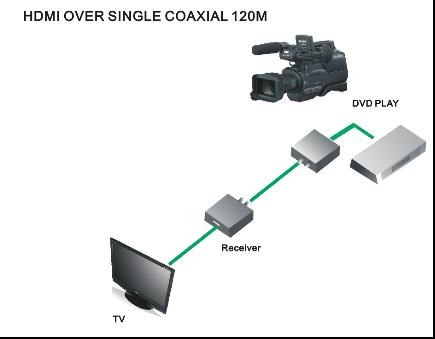

The HDMI Over Single Coax Extender system consists of a Transmitter and a Receiver. The HDMI source (set-top box, DVD player, or gaming console) connects to the Transmitter box with a HDMI cable. The Receiver box connects to the HDTV display in the same way -- up to 100M away. One 75Ohm RG-6U Coax cable links the Transmitter and Receiver. Power is applied to the Transmitter and Receiver with the included.

Features
- Flexible extension of high-bandwidth HDMI 1.3 thanks to the performance and reliability of 75Ohm RG-6U Coax cable
- Audio and video are transmitted digitally over the 75Ohm RG-6U Coax cable with zero signal loss
- Single Link Range: 1080p/60, 12 bit color depth
- Compliant with HDMI 1.3, HDCP 1.1 standards
- Supports digital video formats in Deep Color Mode at up to 12bits/color
- Supports PCM L/R audio

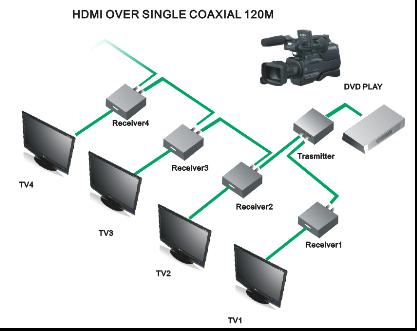

- Supports Cascade function in Transmitter and Receiver and it is easy to build a network system by installer
- Lip-Sync Pass Through
- Deep Color Supported (XV Color Supported)
- Cascade function in Transmitter and Receiver
