HDV-122 HDMI Splitter 1 x 2 Distributes 1 HDMI Source to 2 HDMI

HDV-122 HDMI Splitter 1 x 2 Distributes 1 HDMI Source to 2 HDMI

Introduction:
- 1 × 2 HDMI splitter distributes 1 HDMI source to 2 HDMI displays simultaneously. It offers HD video solution for super market ; shopping m all ; HDTV, STB, DVD , projector factory; data control center; information distribution; conference room presentation; education and training ; corporation show room ; home theater , etc.

Specifications:
- Input Video Signal     0.5 -1.0 volts p-p
- Input DDC Signal     5 volts p-p (TTL)
- Max Single Link Range     1920X1080, 1080P
- Output Video     HDMI 1.3 + HDCP1.0/1.1/1.2
- Resolutions DTV/HDTV     480p/576i/576p/720p/1080i/1080P
- HDMI Version     HDMI 1.3
- Operating Frequency     Up to 225MHz
- EIDI Duration     4 seconds
- Power supply     DC 5V

Connection:
- Connect the input source and output displays to the HDMI Splitter .
　*Please refer to the Connection Image.
- Connect the DC 5V power supply to the splitter. Please kindly note that power supply with higher voltage may damage the splitter.
- When input source and output displays are connected and turned on, the corresponding LED will light.
　Attention: In order to protect the splitter and your devices, p lease make sure the splitter is
powered off before you attach in or extract video source and displays . Please insert and
extract HDMI cables gently.

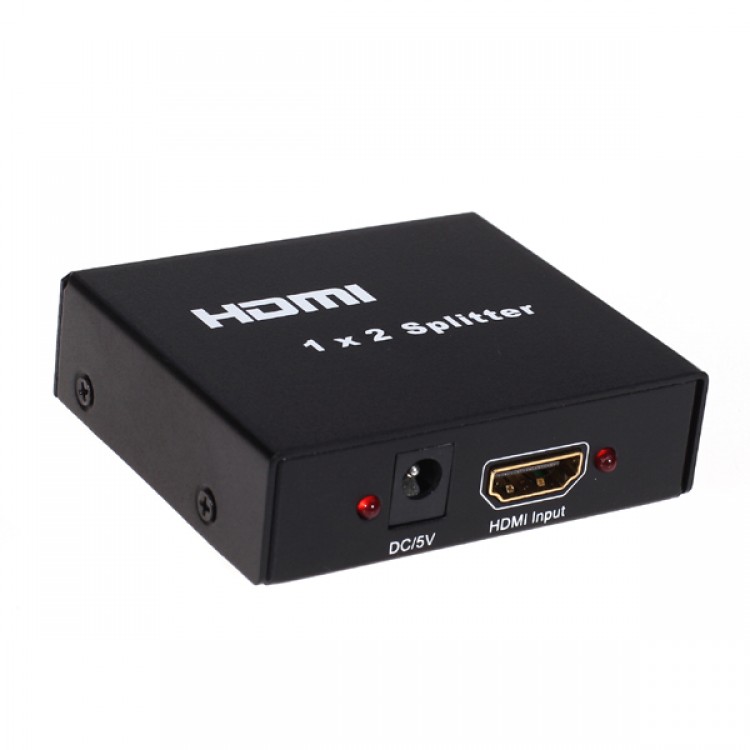

Interface
① Power LED               ② Power Supply Socket
③ HDMI Input                ④ LED of HDMI Input
⑤ HDMI1 Output           ⑥ LED of HDMI1 Output
⑦ LED of HDMI2 Output    ⑧ HDMI2 Output

Box contents:
- Item    Qty    Remark
- HDMI splitter 1 × 2    1 PCS
- Power    1 PCS    DC5V/1A
- User Manual    1 PCS    en

FAQ
- The splitter doesn’t appear to be functioning.
-  Firstly, check if the LED lights, if the power supply is in good condition and well connected. Secondly, make sure all cables are in good condition and well connected.
- Thirdly, make sure the length of the cables is within the maximum supported length of this splitter. Lastly, please try to connect the input source to the display directly to see if it display normally.
- If the maximum resolution the two displays supported is not the same, what resolution be displayed?
- The splitter will display at the lower one to both displays.
