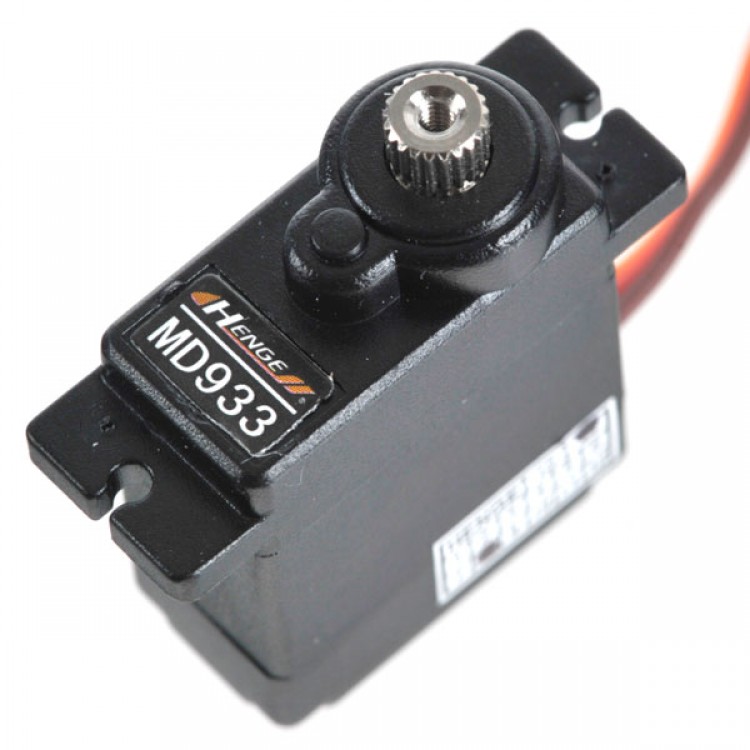

HENGE MD933 Digital Servo 12g Metal Gear for TREX 450 (3-Pack)
MD933 digital servo features:
- Use metal gears, especially use steel material in output gear, which has better intensity , abrasion resistance and accuracy, makes sure servo's output deviation very small after long time running
- Use high quality motors as FUTABA's, makes sure the servo's life longer, and tests prove it can continually run in high speed for 50 hours
- Use Japanese raw material to produce outer shell, which is more sturdy and durable and can bear 120 C temperature
- Rapid response control, better acceleration
- Very nice consistency, center error less than ±0.5 degree, angle ±40 degree, biggest ±60 degree, error less than ±0.5 degree
- Have overload current protection function, even if the output gear is blocked, motor and electronics component will not be damaged
- Suitable to be used in 450 dynamoelectric helicopters to control the inclined dishes and in fixed wing airplanes
Specifications:
- Operating voltage range: 4.5V—6.0V
- Operating temperature range: -20℃ to +60℃
- Operating speed: 0.10 sec/60℃ 6V, 0.12 sec/60℃ 4.8V
- Torque: 2.0kg.cm 6V, 1.8kg.cm 4.8V
- Idle current: 5mA at stopped
- Running current range: 50-150mA
- Block up to turn electric current: 600mA
- Dead band width:≤4usec
- Angle deviation: center :<±0.5°; angle ±40°, error :<±0.5°
- Bearing material: Metal
- Gear material: 4 metal gears and 1 nylon gear
- Connector wire length: 21cm
- Size: 22.5×11.5×24.6mm
- Weight: 12g
Package included:
- 3 x Digital Micro Metal Servo MD933
