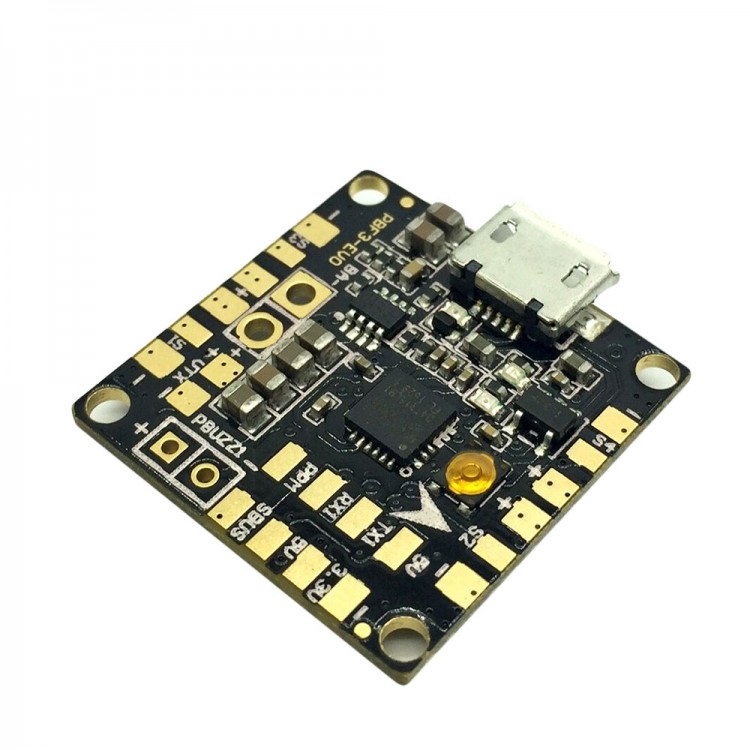

HGLRC PBF3 EVO F3 Brushless Flight Controller Board MPU6000 SPI + BES for FPV Drone Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$23.60
  • Price in reward points: 236 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $23.13 $22.66 $21.95 $21.00 Contact US
Quantity:

HGLRC PBF3 EVO F3 Brushless Flight Controller Board MPU6000 SPI + BES for FPV Drone Quadcopter

Specifications:

- Integrated 5V 3A BEC,PDB power distribution board, (version 6DOF, but no barometer or electronic compass)
- 23*23MM board with 20mm mounting M2 holes
- PDB support maximum hexacopter, built in RC/LC filter,support CF, BF firmware (PIKOBLX)
- 2.8g high-quality gold 4-layer board
- STM32F303CCT6 CPU,256K
- MPU6000 (USE SPI)
- Support 2-6S input
- Built-in 5V/3A BEC
- PDB Current 100A max
- Receive SBUS/DSMX/PPM
- Telemetry Support
- Buzzer/LED strip/6 motors/Transponder
- ESC-BLHELI Programming

Description:
- Ultra light, astonishingly small and packed with massive levels of performance capability, the HGLRC PBF3-EVO is the one and only flight controller that is ready & waiting to devastate the micro FPV competition. Unlike any other system available today, the HGLRC PBF3-EVO provides an all in one solution that brings forth the ultimate in simplified sophistication, utilizing industry leading technology that has never been seen in a system this compact.
- With an industry 1st gold plated PDB that is integrated within,the HGLRC PBF3-EVO provides the ultimate in soldering ease with the highest grade of connectivity, allowing direct soldering points for motors, VTx, Receiver and FPV Camera. Simplicity has met its match, and we have yet to get started.
- Utilizing the very latest F3 chip processor with built in CleanFlight & BetaFlight firmware, the PBF3-EVO utilizes industry leading components with an included LC filter for the very best in signal reception. Add the 3A 5V BEC with a built in Sbus inverter, and the PBF3-EVO stands alone amongst all the rest with a potent blend of race ready madness.
- Specified for micro FPV racing, the ultra small footprint of the PBF3-EVO is the perfect fusion of nano racing mania, providing a flight controller experience second to none.
- For the pinnacle in simplicity, performance and cutting edge capability, the PBF3-EVO is the ultimate solution when it comes to the micro FPV world. Get yours today, and change the way you FPV.

Package Contents:
- 1 x Flight Controller Board
