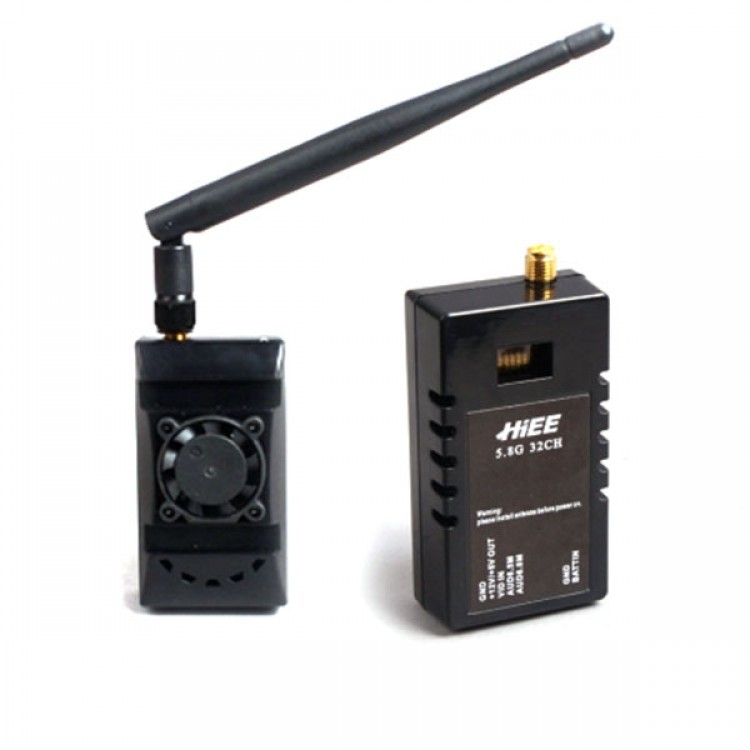

HIEE FPV 5.8G 1500mW 32CH 3-6S Wide Range Voltage A/V Transmitter TS3215 1.5W

Availability: Out Of Stock

  • Price:$112.13
  • Price in reward points: 1121 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $109.89 $107.64 $104.28 $99.80 Contact US
Quantity:

HIEE FPV 5.8G 1500mW 32CH 3-6S Wide Range Voltage A/V Transmitter TS3215 1.5W

Features
- 3S-6S super wide voltage range.
- 32 CH, compatible with 5.8g receivers.
- 1500MW, 3000m transmitting distance in open area.
- Detachable moisture-proof ABS shell, more simple installation.
- Output voltage 12V/ 5V optional, you can select the output voltage by using the jumper to suit the power supply of your camera.
- Compatible with AAT antenna system using 6.0M, 6.5M audio coding protocol.

Special hints:
- Output voltage selection can only be done while the system is powered off.
- Antenna must be installed properly before power on the TX.
- Channel selection can only be done before the system is powered on.
- Output can only be used for camera, extra devices connecting to the TX output may cause over current and burn the output circuit.

Product Details

- Transmitter power:1500MW
- 3000 transmission distance in open area
- Input power:3S-6S
- Antenna connection:RP-SMA Jack in transmitter unit
- Plug in antenna
- Antenna gain:3DBI
- Working current:800MA/12V
- Working temperature: -10C-85C
- Net weight: 36g( without shell); 46g(with shell)
- Size: 64x 35x 27MM(with shell)

Package list:
- 1 x HIEE FPV 5.8G 1500mW 32CH 3-6S Wide Range Voltage A/V Transmitter TS3215 1.5W
