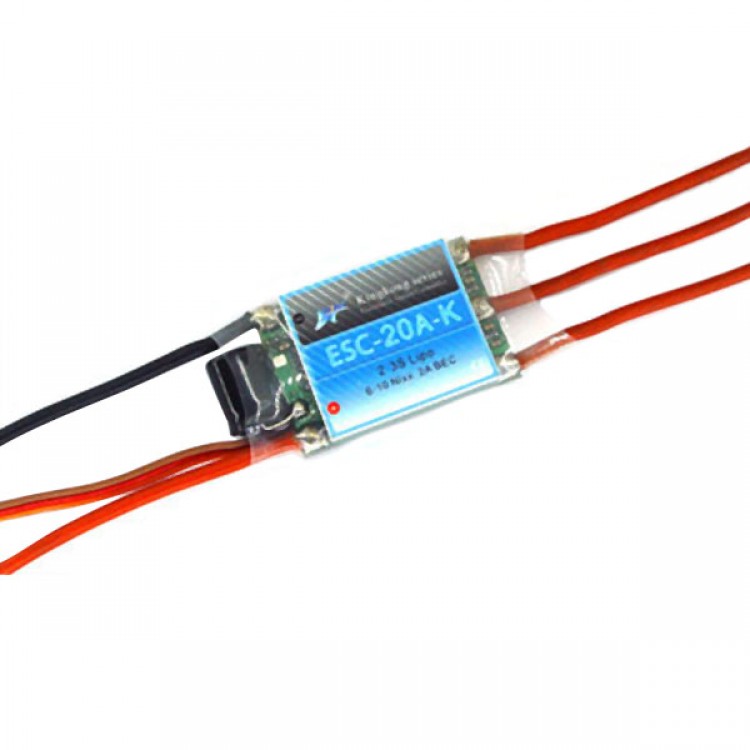

Hifei KingKong Series 2-3S 20A Electric Speed Control with Data Logger ESC-20A-K
Features:
- Microprocessor controlled

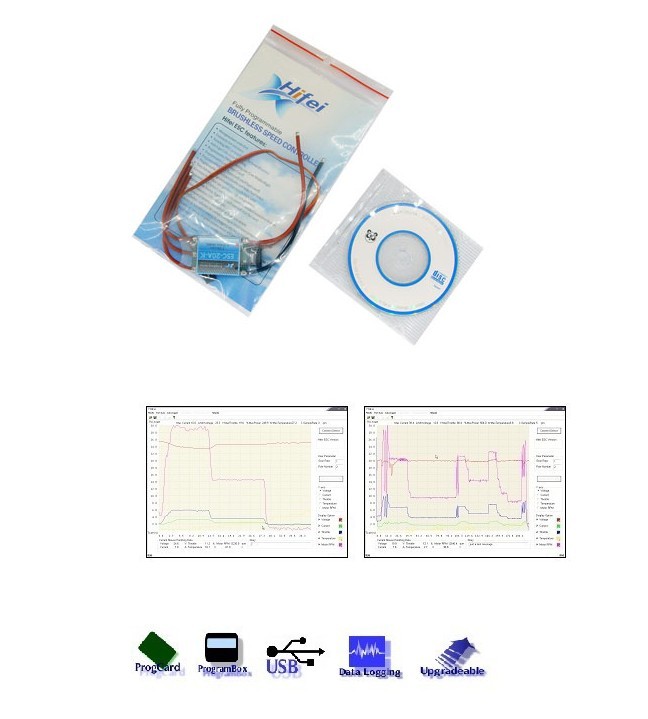

- Integrated the function of flying data logger, could recording the flying data as:
- Current
- Voltage
- Temperature
- RPM
- Power
- Throttle travel
- Programmable the parameters of ESC through USB cable connected to computer
- Upgradeable the firmware of ESC through Internet
- 20A continous(30A surge)
- Up to 10 cells NiMH/NiCad or 2~3cell Lithium-polymer
- High rate adjustable switching (PWM:8KHz/12KHz/16KHz)
- BEC:2A (Linear BEC)
- Support 3 micro servos
- Programmable low voltage cutoff
- Programmable cutoff types(soft cutoff/hard cutoff)
- Programmable brake type(disable/soft brake/hard brake)
- Time advance programmable (low/standard/high)
- Programmable current limiting(very sensitive/standard/insensitive/disable)
- Governor mode(low rpm governor/high rpm governor)
- Programmable startup type(very soft start/soft start/fast start)
- Thermal Protection(100 centigrade)
- Apply to most of inrunner and outrunner brushless motors.
- No complex programming, auto adapt work mode.
- A LED (flashes) indicates full throttle.
- Runs motor in forward or reverse by swapping any two motor wire connections.
- Safe “power on” arming program ensures motor will not accidentally turn on.
- Auto shut down when signal is lost or radio interference becomes severe for more than 3 seconds .After radio connection has been reestablished, moving the throttle to the lowest position can restart the motor.
- The ESC is disabled when the voltage is over 15v at power-on
Specfications:
- Type: ESC-20A-K
- Size: 52mm X 26mm X 10mm
- Weight: 23g
- Constant Current:20A (30A burst)
- BEC: Yes, 2A
- Input: 2 to 3 Li-Po, or 4 to 10 Ni-MH/Ni-Cd
- Data logging function: YES
- Programing methods: Program card/Program box/USB Linker capable (not included)
Down load:
- Setting up -user manual
