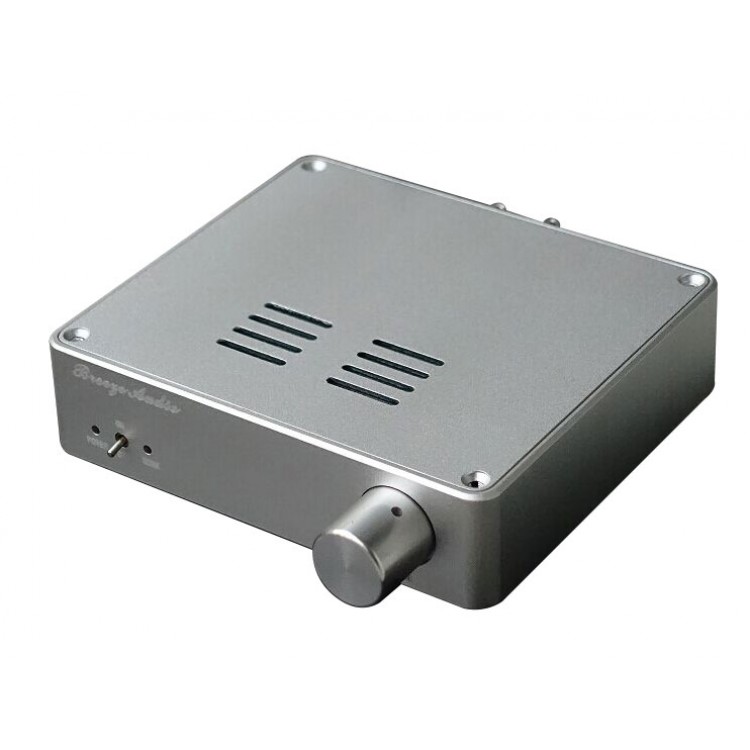

HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply
  • HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply
  • HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply
  • HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply
  • HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply

  • SKU:53262
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$57.18
  • Price in reward points: 572
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $56.04 $54.89 $53.18 $50.89 Contact US

HIFI Digital Power Amplifier TAS5613 Class D 150Wx2 Dual Channel Audio AMP with Power Supply

Description:

- Using original TAS5613
- The main capacitor adopts Samyoung 470UF*4/100V, to ensure the strong power .
- Five rings metal resistance, the main loop with precision of 1% rings of metal film resistance, to ensure that the good signal to noise ratio.
- The use of audio frequency specific large current inductor to ensure the sound clear and strong.
- PCB using 1.6mm thick double-sided plate, 2 a copper thickness, tin spraying process, to ensure good performance . First class PCB quality.

Basic performance parameters:
- Working methods: class D
- Quiescent current: 65mA
- Work efficiency: 88%
- Output power: 2*150W/4 Europe 10% THD
- Frequency response: 20Hz to 20KHz
- Dynamic range: >100 dB
- Signal to noise ratio: 100dB (A-Weighted)
- Working voltage: DC20-36V
- Overall size: 160*140*45MM

- Input power: DC 20-36V <4A
- Power socket : (5.5mm outlet / 2.1mm centre pin) x 1
- Audio Input: RCA input (Left/Right) X2
- Input sensitive: 200mV
- Speaker OUT (Left) x 1 pair (+ / -)
- Speaker OUT (Right) x 1 pair (+ / -)
- Single LED Indicator : (stand by)
- Power Output (DC35V power supply) :
  150W+150W R.M.S : RL = 4Ω,THD =10%
  110W+110W  R.M.S:  RL = 6Ω,  THD = 10%
  90W+90W  R.M.S:  RL = 8Ω,  THD = 10%

Package Contents :
- 1 x Power supply
- 1 x Digital Power Amplifier
