HIFI IRS2092 +IRFB4227 Mono Class D Power AMP Amplifier board 1000W ±65V--±80V

Availability: In stock, usually dispatched in 1 business day

  • Price:$61.90
  • Price in reward points: 619 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $60.66 $59.42 $57.57 $55.09 Contact US
Quantity:

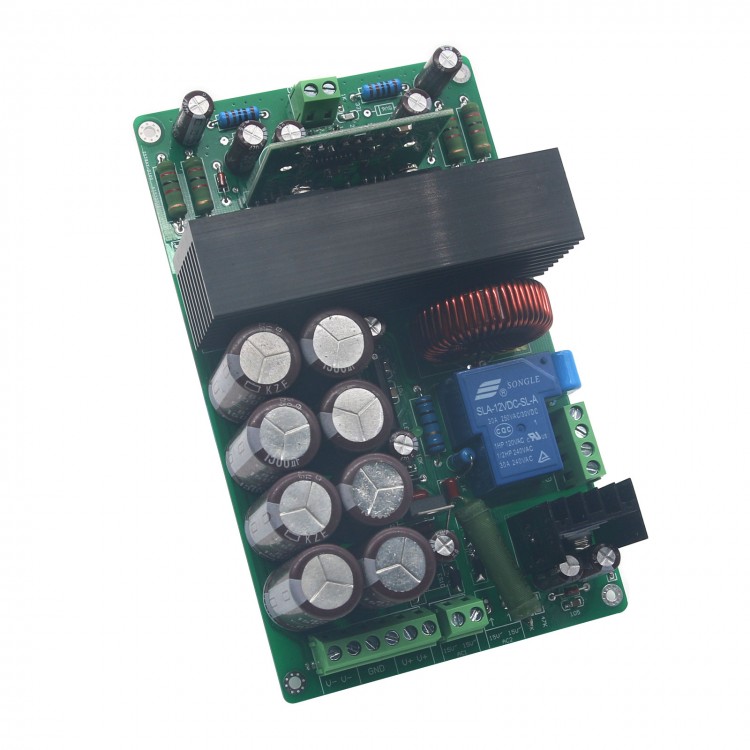

HIFI IRS2092 +IRFB4227 Mono Class D Power AMP Amplifier board 1000W ±65V--±80V


Description:

1. Supply voltage: dual DC power supply ± 65V --- ± 80V (three lines)

2. Recommended voltage: positive and negative DC 70V

3. Maximum output power:
1000W / 2Ω
900W / 4Ω
600W / 8Ω

4. Efficiency:> = 90%

5. Signal to noise ratio: 90dB

6. Speaker: 2Ω-4Ω-8Ω

7. Weight: about 485 grams

8. Board size:
Long: About 175MM
width: About 96MM,
the total height: about 55mm
(including the back of the components)
 Features:

* The latest production of HIFI mono high-power IRS2092 digital amplifier board, can deal with 2ohm load.

* Effective power of 2ohm 1000W, 4ohm 900W, 8ohm 600W, mono.

* With IRFB4227 TO-3P large tube

* Power amplifier comes with temperature protection, speaker protection, midpoint DC protection, can be bridged.

* The main chip uses imported IRS2092 and IR company digital audio MOSFET MOSFET IRFP4227 (large tube), inductance using T130 large magnetic ring inductance

* PCB circuit board using KB-class military board , Thickness 2mm, the thickness of
the thick choice of copper plate 2/2oz.

P.S.:

1. The supply voltage in the dual DC ± 65 --- ± 80V can work properly, recommend-
ed for the DC dual power supply ± 70V filter better power supply.

2. Speaker recommended with 4 or 8 ohm

3. Please check carefully before powering on, make sure that the wiring is correct.

4. Boards Depending on the assembly lot, the color of the board and the componen-
ts of the board assembly will be different!

5. Wiring instructions: board power supply for the dual power supply DC power supply, recommended positive and negative DC 70V power supply.
