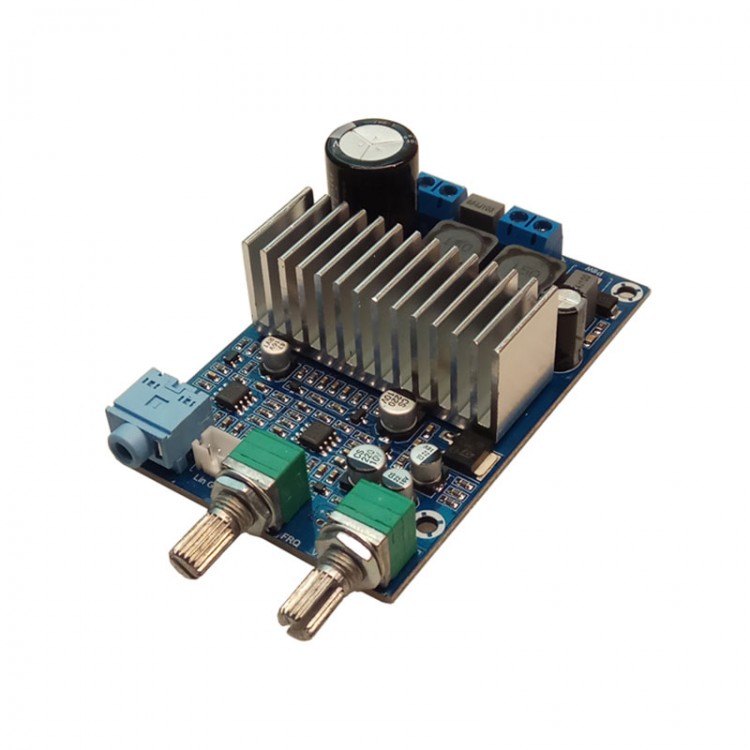

HIFI Stereo Power Amplifier Board TPA3116 DC12V to 24V Digital Audio Bass AMP
  • HIFI Stereo Power Amplifier Board TPA3116 DC12V to 24V Digital Audio Bass AMP
  • HIFI Stereo Power Amplifier Board TPA3116 DC12V to 24V Digital Audio Bass AMP

  • SKU:53119
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$15.24
  • Price in reward points: 152
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.94 $14.63 $14.17 $13.56 Contact US

HIFI Stereo Power Amplifier Board TPA3116 DC12V to 24V Digital Audio Bass AMP

Features:

- With pre amp, with bass volume potentiometer control
- Digital amp chip TPA3116D2
- DC12-24V power supply, efficiency up to 90%,maximum supports 100W bass output
- No POP noise when sharting
- Already welded and tested, finished board.

Specifications:
- Working voltage: DC9-25V (current 2-3A,recommend 19-24V 4A if high power)
- Board size: 55*83*29mm
- Frequency response: Input 20Hz-20Khz, output: 20Hz-180Hz
- Audio input sensitivity: 500mV
- Bass speaker impedance: 2-8Ohm

Note:
- DC power supply to the board
- The maximum power voltage should be <=25V
- Must add rectifier filter if AC transformer power supply

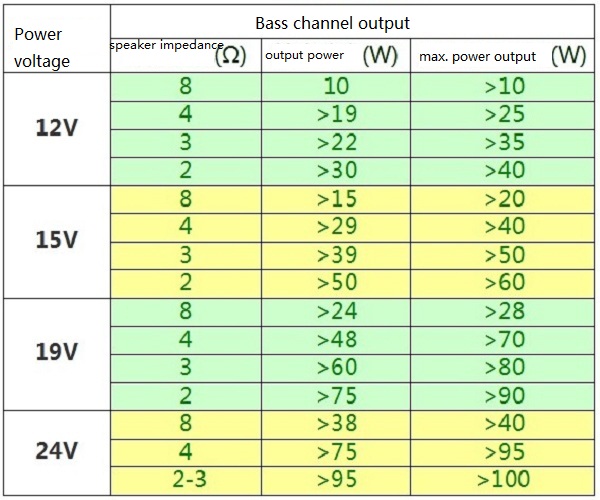

- When power supply >=12V/2-3A, recommend bass speaker >-5-8" 3-4Ohm/25-45W
- When power supply >=19V/3-4A, recommend bass speaker >-5-10" 3-4Ohm/40-80W
- When power supply >=22-24V/4A, recommend bass speaker >-6-10" 3-4Ohm/80-120W

Package Contents:
- 1 x Power Amplifier
- 1 x Remote controller
- 1 x Manual
