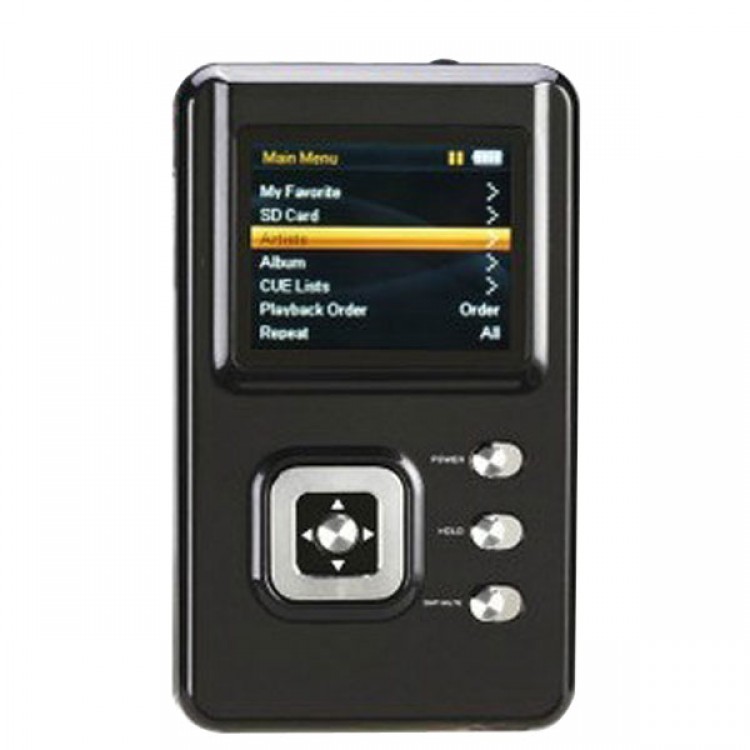

HiFiMAN HM602 HM-602 Slim 8GB Hi-Fi Portable Music Player

HiFiMAN HM602 HM-602 Slim 8GB Hi-Fi Portable Music Player


HM-602 is the first portable player using non-oversampling DAC: Philips TDA-1543. As younger brother of HM-801,  HM-602 shares HM-801's great sound signature. To make it as portable as possible, HM-602 do not have amplifier modular design.
However, its headphone amp part is very similar to HM-801's standard module. To drive both high impedance and low impedance headphones, HM-602 with the high / low Gain switch can drive both high efficiency IEM and most full size headphones. In addition, HM-602 also can work as a USB DAC.

Specifications:
- D/A Chip: TDA1543
- LPF Op-amp: OP275, OPA2604
- Headphone Amplifier Op-amp: OPA2107
- Freqency Response: 20-20K Hz
- Distortion: 0.09%
- S/N: 92 DB
- Stereo crosstalk: 74 DB (Lineout)
- Headphone Amplifier
- Output level: 1.1v at 32 Ohm; 2.2v at 150 Ohm
- Max Output: 30mw at 32 Ohm; 26mw at 150 Ohm
- Size: 62mm*103mm*26.5mm or 2.4 * 4.05 * 1.04 Inch
- Weight: About 200g / 7Oz
- On board Flash: 8GB
- Battery time: 9 to 10 Hrs
- I / O: Headphone Output; Line Output; USB Data Exchange; USB DAC Input; SD card (up to 32GB)

Package included:
Ÿ- 1 x HM-602 Slim 8G Portable MP3 player
Ÿ- 1 x USB cable
Ÿ- 1 x Power adapter (100-240v )
- 1 x A small adapter
Ÿ- 1 x A black bag
- 1 xŸ English Manual
