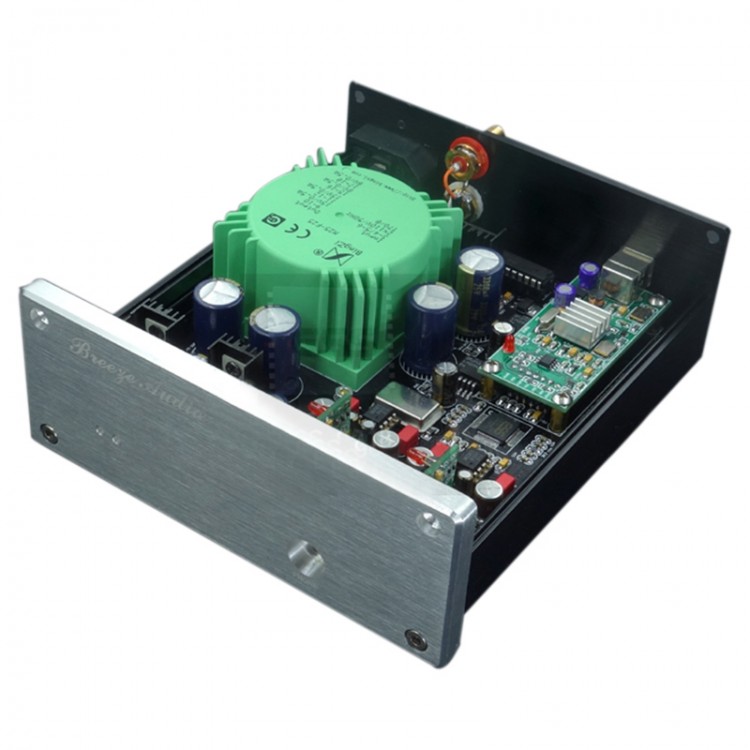

High-End ESS9018 XMOS Asynchronous USB DAC SU3 ES9018 DAC Support DSD/PCM 32BIT 384K And Headphone Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$227.23
  • Price in reward points: 2272 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $222.69 $218.14 $211.32 $202.23 Contact US
Quantity:

High-End ESS9018 XMOS Asynchronous USB DAC SU3 ES9018 DAC Support DSD/PCM 32BIT 384K And Headphone Output

Description:
- If you want upgrated to the below Italy Amanero usb iis Digital Interface, you need add extra 60USD.
- With 3.5MM Stereo Headphone Monitoring jack, Headphones can be connected directly use
On the left is the power lamp. The right is the PCM DSD signal indicator lights, PCM is lit green, DSD is lit in red.
- Back panel with USA CMC RCA output terminals, can be connected to the amplifier, speakers, and headphone amp for use! (Special Note: not include the COAX OUT as the below picture show)
- LM2941 low-noise voltage regulator for the ES9018 provides a clean energy
- I / V converter use top MUSE8920 op-amp.

Features:
- DAC chip:ESS9018
- Op-amp: MUSES8920
- The inputs use XMOS USB audio asynchronous receiver solution
- Soft control mode for optimized ES9018 set, the perfect support for DSD and PCM playback, support to play high bit-rate 32BIT 384K
- High-end aluminum chassi

Parameters:
- Input: USB data cable
- Output: RCA + 3.5 headphone jack
- Bit depth: 16bit 24bit 32bit
- Environment: Windows / MAC / part of the mobile device (phone, tablet)
-  Sampling Rate Support:
-  PCM: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz
-  DSD: DSD64, DSD128, DSD256 (2.822, 3.072, 5.644, 6.144, 11.2896 and 12.288MHz)
- RCA Output level: 2.5 Vrms @ 0dBFS
- Frequency Response: 20-20K Hz +/- 0.15dB
- Dimensions: width 150 height 58 depth 164.5
- Net Weight: 1.3Kg

Packing included:
- 1xDAC
- 1x USB cable
