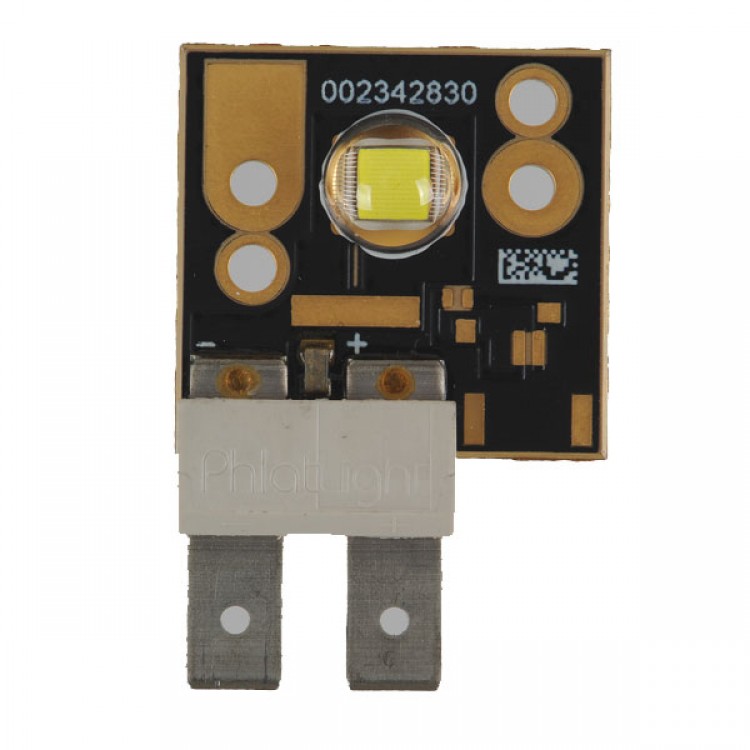

High Power CST-90 Luminous Device LED Lighting Module for Tank and Vihicles
Descriptions:
- PhlatLight Technology
- The name PhlatLight is derived from Photonic Lattice. Photonic lattice technology creates true surface emission from the source,which enables large area LED chips with uniform brightness over the entire LED chip surface. The optical power and brightness produced by these large monolithic chips enable solutions which replace arc and halogen lamps where arrays of traditional high power LEDs cannot.

Features
- Extremely high optical output: Over 2,750 lumens from a single chip (White)
-  Extremely high efficiency: Over 100 lumens per watt at 350mA/mm2
 - High thermal conductivity package - junction to heat sink thermal resistance of only 0.9 C/W
-  Large, monolithic chip with uniform emitting area of 9 mm2
-  Lumen maintenance of greater than 70% after 60,000 hours
-  Environmentally friendly: RoHS compliant
-  Variable drive currents: less than 1 A through 13.5 A to full
-  reliability specifications
-  High reliability
Applications
 - Architectural Lighting
 - Retail Lighting
-  Residential Lighting
-  Consumer Portable
-  Spot Lighting
-  High Bay Lighting
 - Wide Area Lighting
-  Street Lighting

Specfications:
- Products: LED Modules
- LED number:  1
- Color:  Cool White
 - 6500 K
 - Luminous flux:  850 lm
 - 26.75 mm* 28 mm
 - encapsulation:Tray
 - Color Rendering Index - CRI:  70
 - Curreent:  3.15 A
 - Voltage 3.25 V
