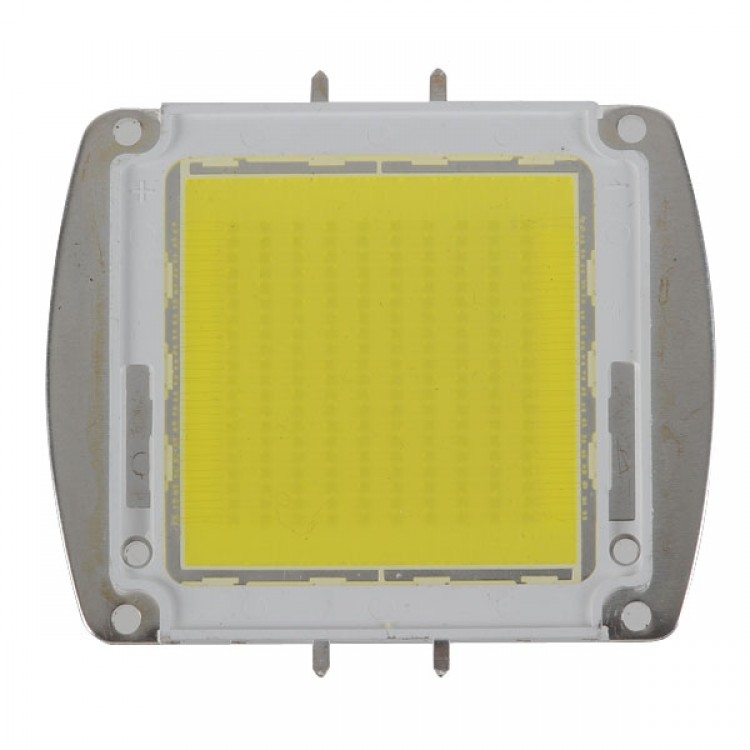

High Power Super Bright 500W LED Lamp Light-Cool White
  • High Power Super Bright 500W LED Lamp Light-Cool White
  • High Power Super Bright 500W LED Lamp Light-Cool White
  • High Power Super Bright 500W LED Lamp Light-Cool White

  • SKU:21987
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 21
  • Price:$211.64
  • Price in reward points: 2116
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $207.41 $203.17 $196.83 $188.36 Contact US

High Power Super Bright 500W LED Lamp Light-Cool White
Features:
- Excellent Operating life 500W led
- High Efficacy 500W led of 95lm/W
- Low thermal resistance
- Instant light

 Electrical Characteristics at 350mA,Ta=25°C 500W led

Color

Part No

Forward  Voltage

Units

Min

Type

Max

White



60.00

-

66.00

V

Notes:

  1. The forward voltage is measured with an accuracy of ±0.1V

 Color Temperature or Dominant Wavelength or Peak Wavelength 500W led

Color

Part No

CCT

Units

Min

Type

Max

White



6400

--

6600

K

Notes:

  1. The CCT is measured with an accuracy of±200K
  2. The wavelength is measured with an accuracy of±1nm

 Absolute Maximum Ratings 500W led

Parameter

Symbol

Rating

Unit

white



DC Forward Current(mA)

If

7500

mA

Peak Pulse Current(mA)

If

7500

mA

Reverse Voltage

VR

5

V

LED Junction Temperature

Tj

125

°C

Operation Temperature

Topr

-40--100

°C

Storage Temperature

Tstg

-40--100

°C

Soldering Temperature

Tsol

260

°C

ESD Sensitivity

Vb

4000

V

 General Characteristics at700mA 500W led

3.1 Luminous Flux at 700mA,Ta=25°C

color

Part No

CRI

Flux

Units

Min

Type

Max



White

WC100U180

75-80

45000



50000

lm

Notes:

1.Luminous flux is measured with an accuracy of±10%

Reliability Information 500W led

Stress

Stress Condition

Stress Duration

Room Temperature Operation Life ,RTOL

TA=25°C,IF=7500MA

1500hour

High Temperature Operation Life,HTOL

TA=65°C,IF=7500MA

1500hour

Low Temperature Operation Life,LTOL

TA=40°C,IF=7500MA

1000hour

High Temperature/High Humidity Operation

Life ,WHTOL

TA=85°C,RH=85%

IF=7000MA

1000hour

Temperature Cycles

-40°C/125,30min dwell,

5min transfer

200cycles

 Failure Criteria:

  1. Brightness attenuate difference3%
  2. Forward voltage difference:2%
    Typical Applications:
    Reading and portable lamp
    interior LEDluminaries
    Decorative lamp
