• High Precision 5.8 GHz 5945MHz Ch8 Circular Polarized Antenna Pair - RP-SMA Plug

High Precision 5.8 GHz 5945MHz Ch8 Circular Polarized Antenna Pair - RP-SMA Plug

Availability: In stock, usually dispatched in 1 business day

  • Price:$18.90
  • Price in reward points: 189 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $18.52 $18.14 $17.58 $16.82 Contact US
Quantity:

High Precision 5.8 GHz 5945MHz Ch8 Circular Polarized Antenna Pair - RP-SMA Plug


Features:
- High precision circular control,  greatly improve the range and covering of your wireless video transmitting and receiving system.
- This antenna works best at 5945MHz (usually channel 8 for conventional 8 channels TX, and channel 3-8 for 32 channel TX).
-  There is no antenna can achieve best performance on all different channels, there must have one fixed frequency on which it works best, and the farther the frequency away from this fixed frequency, the weaker the signal becomes.
We have the Ch8  5645MHz and Ch4 5645MHz two types currently, you can choose the one close to your preferred frequency for better performance.  In other words, this antenna also works at other channels other than the specified channel, but the closer your frequency to the fixed frequency, the better the transmitting/receiving performance.

Specifications:
- High Precision 5.8 GHz 5945MHz  Ch8 Circular Polarized Antenna Pair - RP-SMA Plug
- Gain: 2.0 - 2.5dBi
- Antenna connector: RP-SMA plug (antenna side)  See connector type diagram
- Standing wave ratio(SWR): <1.5
- Best working frequency: 5945MHz (usually channel 8 for conventional 8 channels TX, and channel 3-8 for 32 channel TX).
- Weight: 12.5g (pair)
- Direction: all direction

* This antenna also works at other channels other than the specified channel, but the closer your frequency to the fixed frequency, the better the transmitting/receiving performance.

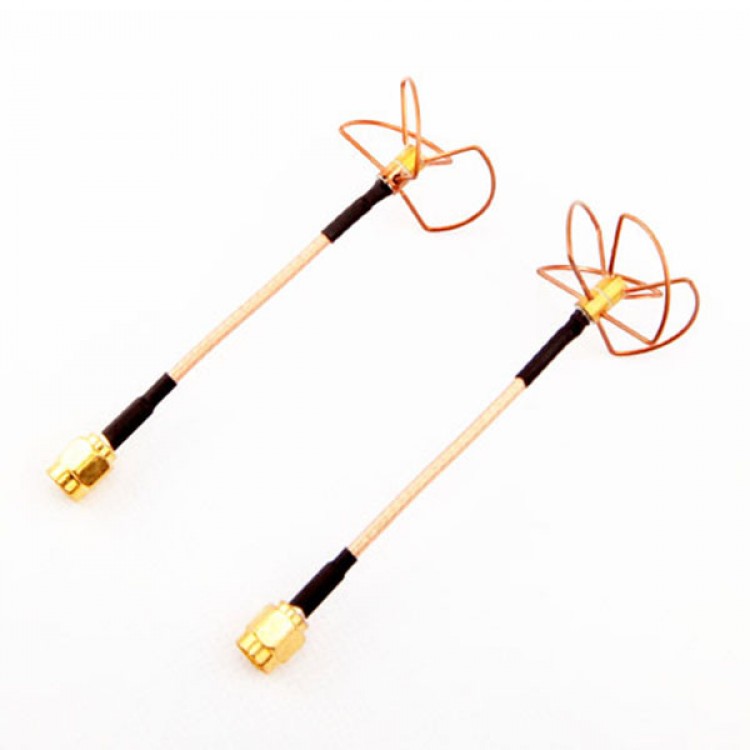

Includes/Requires:
Includes:
- 1 x TX circular polarized antenna 3-leaf
- 1 x RX circular polarized antenna  4-leaf
