High Quality 5A Constant Current Voltage LED Driver Battery Charging Module Voltmeter Ammeter

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.52
  • Price in reward points: 95 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.33 $9.14 $8.85 $8.47 Contact US
Quantity:

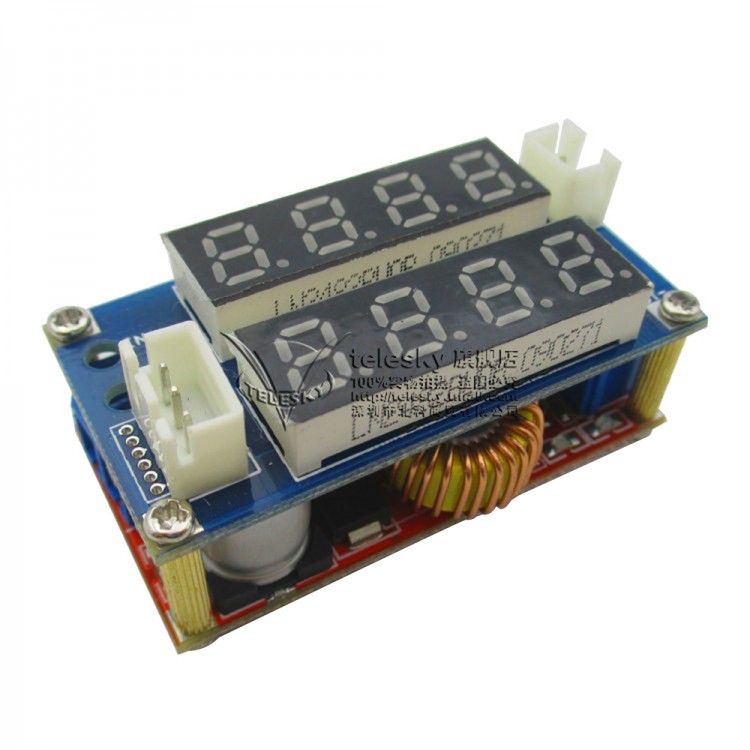

High Quality 5A Constant Current Voltage LED Driver Battery Charging Module Voltmeter Ammeter

Features:

- Module Name: 5A buck constant voltage constant current MPPT
- Module Properties: Non-isolated buck module (BUCK)
- Input voltage: 6-36V
- Output voltage:
  1.25-32V continuously adjustable (the default output 5V)
  MPPT voltage setting range: 6-36V
- Output current range: 0.05-5A (The default output current is 3A)
- Turn lights output range: 0.01-5A (default turn lamp current 0.3A) the current range will be a little difference because the parts parameter error.
- Multifunction double display: input voltage, output voltage, output current
- Operating temperature: -40 to + 85 degree
- Operating frequency: 180KHz
- Conversion efficiency: up to 95% (efficiency, input & output voltage, current and pressure-related)
- Short circuit protection: Yes
- Over temperature protection: (automatically shut off the output after overtemperature)
- Input reverse polarity protection: None, (if necessary, please add the string into the diode)
- Output anti-anti-irrigation protection: no, the output must be connected to the battery plus blocking diode, otherwise it will burn the module!
- Charging indicator: charging red, bright green when fully charged. Turn lamp is the output current detection.
- Installation: 4 pcs 3mm screws
- Connection: IN is the input, OUT is output
- Module dimensions:60 x 31 x 22 mm(without meter)

Note:
Detection module, please do not direct connect the output of negative electrode and the input of negative electrode

Applications:
- DIY a voltage Regulator, with constant current function, Short-circuit proof, can protect the load.
- It can power supply for electronic devices.
- For a variety of battery charge, can observe the state of charge.
- Charger for all kinds of batteries, with MPPT function, can enhance the charging current to double. With a constant current and prevents battery overcharge, effective protection of the battery.
- It can support high-power LED.
- As a car power supply , it can for your cell phone or digital products supply.

Package List:
- 1 x Battery Charging Module
