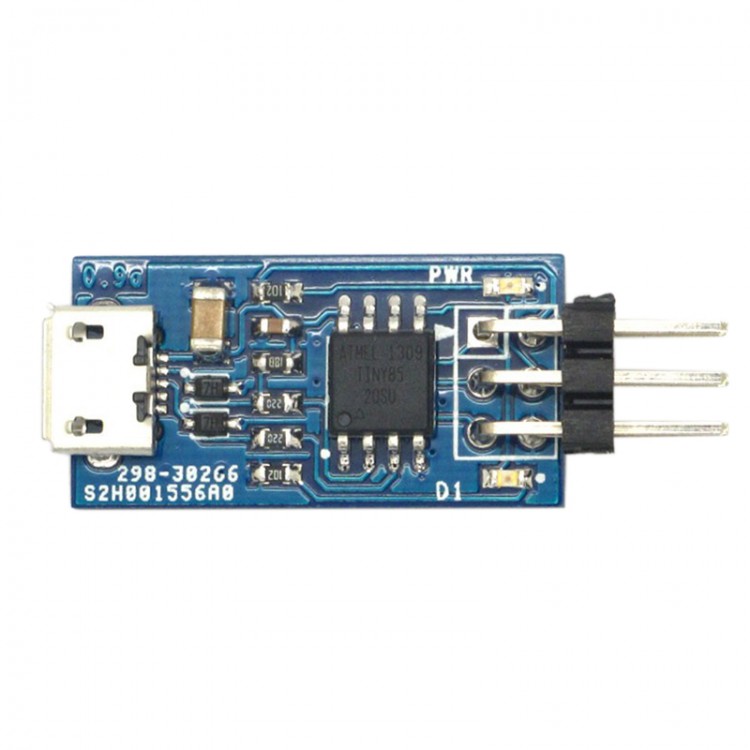

High Quality ITEAD Tiny Development Board Super Micro Interface iteaduino Tiny for Arduino
Features:
- Supports the Ard-uino IDE version 1.0 (Windows)
- Power interface through USB
- Built-in USB
- Four I/O pins
- 8K Flash memory (about 6K after the bootstrapper)
- I2C and SPI (VIS USI)
- 3-pin PWM
- ADC 4-pin
- Power LED and LED test/status

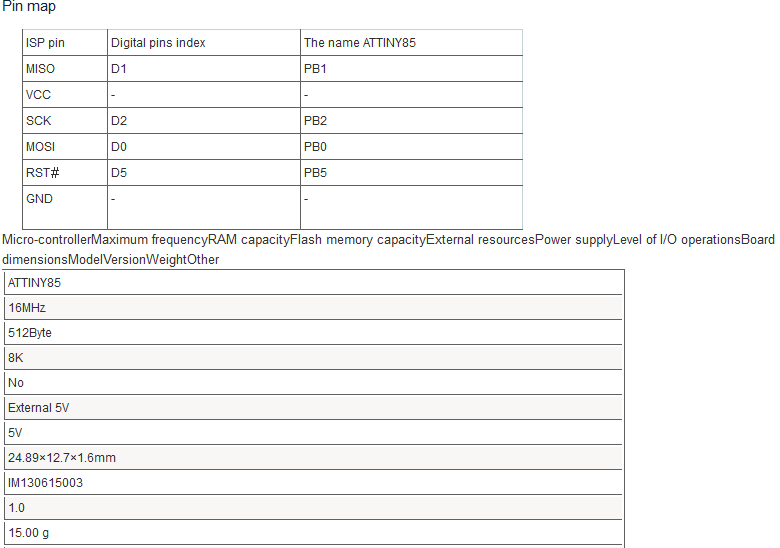

Specifications:
- Micro-controller: ATTINY85
- Working voltage: 5V
- Digital IO pins: PB0,PB1,PB2,PB5
- The analog input pin (ADC): PB2
- Pointer: D1(PB1),PWR
- DC output current IO cable: 40 Ma
- Flash memory: 8 KB to 2 KB bootloader using
- SRAM: 512B
- EEPROM: 512B
- Clock frequency: 16 MHz
- Dimensions: 24.89X12.7X1.6mm
Package included:
- 1 x Tiny Development Board
