• High Sensitivity Mini Sound Sensor

High Sensitivity Mini Sound Sensor

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.16
  • Price in reward points: 92 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.98 $8.79 $8.52 $8.15 Contact US
Quantity:

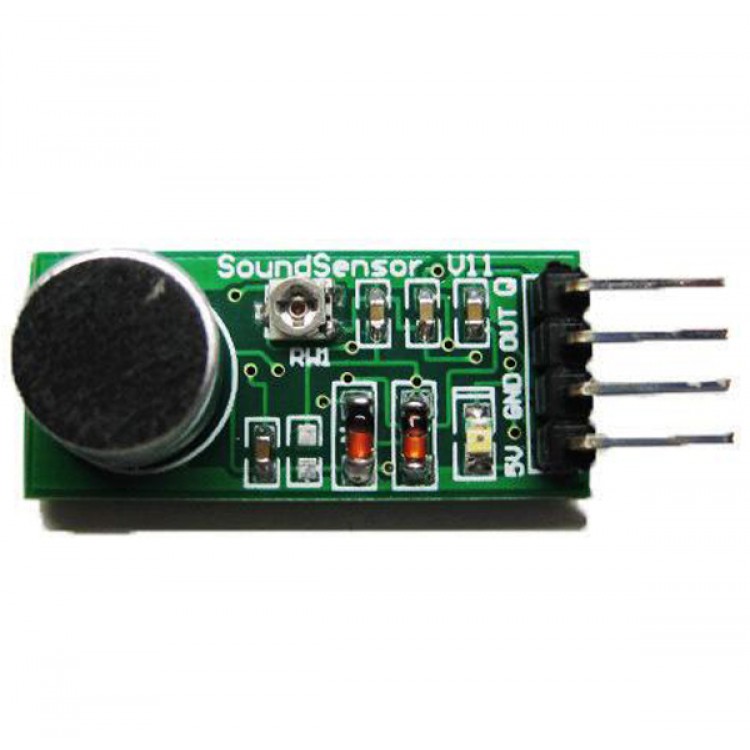

High Sensitivity Mini Sound Sensor

Description:
- The sound sensing brick includes a high sensible microphone and onboard Low Voltage Audio
- Power Amplifier. adjustable Sensitivity by potentiometer.
- The effect of sound sensor is to measure the sound size of environment around, and it can be
- used to achieve interactive effect according to the size of sound.
- Size :23mm×13mm×10mm
- Working voltage: DC 5v

Features :
- With output signal indicator.
- Single signal output.
- Output signal at low level.
- And audio signal output.
- Can be used for sonic lamp, photosensitive sensor, and do the acousto-optic alarm sound control, sound detection.

Connection mode :
- 5V : Power + 5V interface.
- G :GND.
- NC : Audio output pin (audio signal).
- Can adjust input sensitivity through the RW1 potentiometer.
