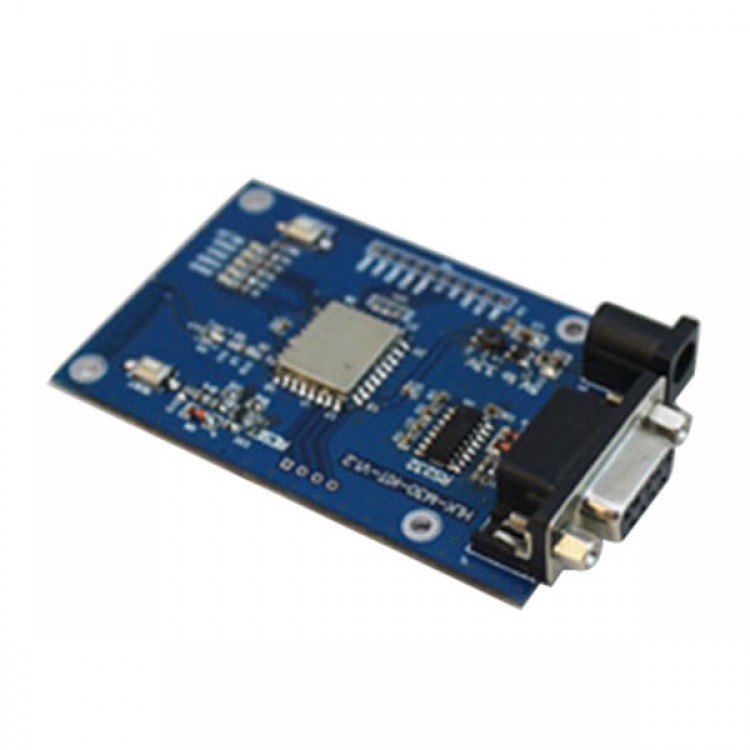

HLK-M30 WIFI Module UART Serial Port to WIFI Remote Wireless AP Module
Description:
1.Taiwan's latest embedded WIFI program
2.Ultra-small size, the size is 14.1 × 16.5 × 2.25mm (not only the smallest serial 3.WIFI module, but also the height of the shortest serial WIFI module)
4.Ultra-low power WIFI module (excellent power saving)
5.1 second Start time
6.Perfectly support 802.11 b / g / n protocol
7.support all WIFI encryption methods in the market
8.Without any user-driven, user need only as a common microcontroller serial interfaces
9.Support AP (hot) / STA (WIFI node)
10.Support TCP Server / TCP Client / UDP Server / UDP Client work
11.Support DHCP DNS HTTP advanced application-layer protocol
12.Supports AT commands to configure the serial port (supports serial configuration tool)
13.support Finding search protocol module in LAN
14.Support SmartLink intelligent networking capabilities, using a mobile phone APP control module a key connection ordinary wireless router
15.Pass CE / FCC certification, ROHS compliant
HLK-M30 module specifications
- Basic parameters
- Wireless Standard
- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Wireless transmission rate
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
- The number of channels:1-14
- Frequency Range:2.4-2.4835G
- Transmit power:14-18 DBM
- Interface:Serial ports, GPIO
- Antenna
- Antenna Type
- External Antenna
- Transmission distance
- 100-300 meters (different environmental conditions, different transmission distance)
- Function parameters
- WIFI mode
- Wireless LAN / wireless access point
- Wireless Security
- Wireless security features
- 64/128/152 bit WEP encryption
- WPA-PSK / WPA2-PSK, WPA / WPA2 security mechanism
- Serial to Network
- Maximum transfer rate
- 115200bps
- TCP connection
- 4 Maximum number of connections
- UDP connections
- 4 Maximum number of connections
- Other parameters
- Status Indicator
- Status Indication
- Environmental Standards
- Working temperature: -20-70 ℃
- Humidity: 10% -90% RH (non-condensing)
- Storage temperature: -40-80 ℃
- Storage humidity: 5% -90% RH (non-condensing)
- Other properties
- Optional frequency bandwidth: 20MHz, 40MHz, automatic
