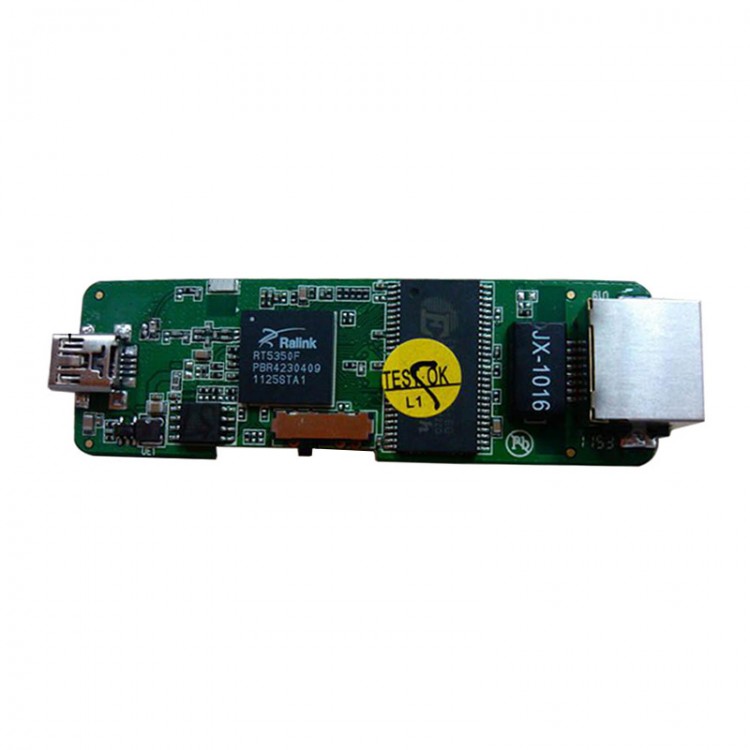

HLK-MP01 Wireless Router Module Net Export to WIFI AP Wireless Bridge RJ45 to WIFI

HLK-MP01 Wireless Router Module Net Export to WIFI AP Wireless Bridge RJ45 to WIFI

Description:
- The wireless router, wireless AP, wireless accessor, bridging, relay, WIFI amplification, wired to wireless, seven kinds of Internet function.
- Working temperature: -25~75 deg C.
- 11N wireless technology, 150Mbps wireless rate

Working mode:
- Support AP (wireless access point), Client (client), Repeater (wireless relay), Bridge (wireless bridge), Router (wireless routing) five kinds of work mode
- AP mode -- the default mode. This mode device is a wireless access point, support plug and play, no need to configure.
- Router mode -- the mode device is equivalent to a wireless router, cable interface as WAN, wireless LAN. Multiple wireless clients can share a broadband Internet line.
- Repeater model -- using equipment wireless relay, relay and amplify the wireless signal, and the formation of new wireless coverage area, to extend the coverage of wireless network to.
- Bridge model -- using bridging equipment, connect FW150RM and front-end wireless network, and then issued its own wireless signal, the formation of new wireless coverage, can solve the effective signal and signal blind spots and weak wireless coverage problem.
- Client mode -- working in this mode AP is a wireless client for AP, the equivalent of a wireless network card.
- Provides a LAN/WAN cable interface, wireless routing mode can automatically switch to WAN port
- Support WPS button key encryption, without the need for manual setting password
- Wireless Internet plug and play
- Built-in wireless hotspot scanning, the SSID name and memory function, can automatically bridge, relay
- Support user management, QOS management, MAC address filtering, web Webpage filter, NAT
- Wireless module. This module allows users to easily access the 802.11b/g/n wireless network to realize the function of the internet.

1. Hardware part
- A 10/100Mbps WAN switch port, support for Auto-MDI/MDIX, the automatic detection of parallel lines and jumper, can connect with ADSL/CableModem
- A reset switch (Reset)
2. Weirless part
- 802.11b/g/n wireless transmission standard
- Frequency: 2.4GHz (1 - 13 channel, ISM band)
- Automatic detection rate
- With IEEE802.11n, IEEE802.11g and 802.11b wireless standard
- Onboard ceramic antenna (external antenna)
3. Router software
- Support Web set
- Universal plug and play (UpnP) function, support network game and online video transmission
- Provide dynamic DNS (DDNS), support dynamic IP frame function
- Support NAT functions, to provide more Internet Environment
- Support the virtual server
- Support xDSL and Cable broadband telecommunications services
- Support PPPoE timing system Internet
- Support DHCPServer/Client
- Support a DMZ host function
- Support IPSec/PPTP/L2TPVPN permeability (Pass-Through) function
- Support the need for multiple connected application settings
The system log (log) function is convenient for the user to query the historical data
4. Security mechanism
- Support 64/128 (802.11G) WEP wireless encryption, password support HEX/ASCII dual mode
- Support WPA/WPA2 (TKIP/AES)
- To provide users with personalized access control list (ACL) mechanism, to support the IP address and /URL/MAC address or domain name filtering function.
- Support for remote management

5. Front panel indicator:
- Power:HLK-MP01 power activation state, constant light red light means that the HLK-MP01 is energized, red.
- WIFI:HLK-MP01 operation,WIFI indicator light, when the normal operation of the wireless data transceiver exhibit of lanterns flicker, green;
- WLAN lamp: RJ45 network port connected to the device or ADSL the lamp to send and receive data will flash, green.
- RST button: press and hold the button for more than 10s minutes, restore factory settings.
- Wireless module. This module allows users to easily access the 802.11b/g/n wireless network to realize the function of the internet.

Specification:
- Network standard: IEEE 802.3, IEEE 802.3u
- Wireless transmission rate:
 11n: can reach 150Mbps
 11g: up to 54Mbps
 11b: up to 11Mbps
- Channel number: 1-14
- Frequency range: 2.4-2.4835G
- Power: 12-15DBM
- Interface: A  10/100Mbps LAN/WAN interface, MINI USB 2.0 interface
- Antenna type: built-in antenna
- WDS: support WDS wireless bridge
- Antenna:
 Wireless security wireless MAC address filtering
 Wireless security function switch
 64/128/152 bit WEP encryption
 WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
- Network management:
 Remote Web management
 The configuration file import and export
 WEB software upgrade
- Product size 80*24*12mm
- Environmental standard working temperature: -20  -60 deg C
- Humidity: 10%-90%RH (not condensed)
- Storage temperature: -40-70 deg C
- Storage humidity: 5%-90%RH (not condensed)
- Other performance band selectable bandwidth: 20MHz, 40MHz, automatic

Packing list
- HLK-MP01 Wireless Router Module
