HLK-MP02 Wifi Module Seriel to Ethernet UART Mini Weirless Router Module

HLK-MP02 Wifi Module Seriel to Ethernet UART Mini Weirless Router Module

Description:

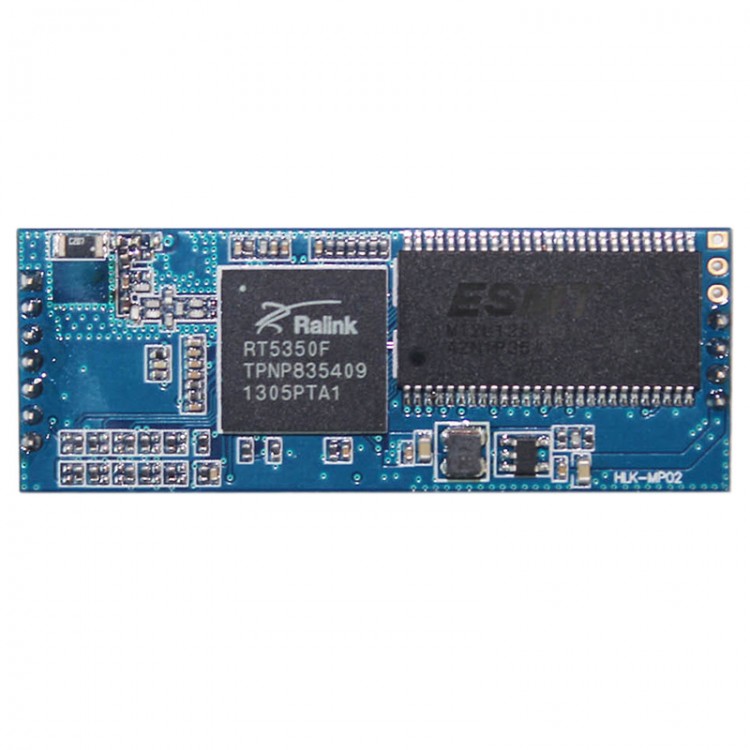

HLK-MP02 uses RT5350 of Ralink main chip developed Mini wireless router. 5V power supply, ISM 2.4GHz frequency band, in accordance with the IEEE802.11b/g/n standard protocol wireless module. The module can be used to access the 802.11b/g/n wireless network to achieve the function of the Internet.

Major application areas:
- Mobile power WIFI;
- Portable wireless router;
- Wireless WIFI amplifier;
- 3G to WIFI;
- Wireless receiver, wired to WIFI Bridge

Parameters:
- Product type: Wireless router HLK-MP02 PCBA
- Network standard: Wireless standard: 802.11n IEEE, 802.11g IEEE, 802.11b IEEE
- Cable standard: IEEE 802.3, 802.3u IEEE
- Wireless transmission rate: 11n: up to 11g: 54Mbps up to 11b: 11Mbps up to 150Mbps
- Channel number: 1-14
- Frequency range: 2.4-2.4835G
- Transmit power: 12-145DBM
- Interface: 1* LAN/WAN 10/100Mbps interface
- Antenna type: Plate loaded ceramic antenna
- WDS function: WDS wireless bridge
- Wireless security:
  Wireless MAC address filtering wireless security features switch
  64/128/152 bit WEP encryption
  WPA/WPA2, WPA-PSK/WPA2-PSK security mechanism
- Remote Web management
- Network management: Configuration file import and export;WEB software upgrade
- Status indicator
- Working temperature: 0-40
- Working humidity: 10%-90%RH (not setting)
- Storage temperature: -40-70 deg C
- Storage humidity: 5%-90%RH (not setting)
- Other properties: Band bandwidth optional: 20MHz, 40MHz, automatic

Package included:
- 1 xHLK-MP02 Wifi Module
