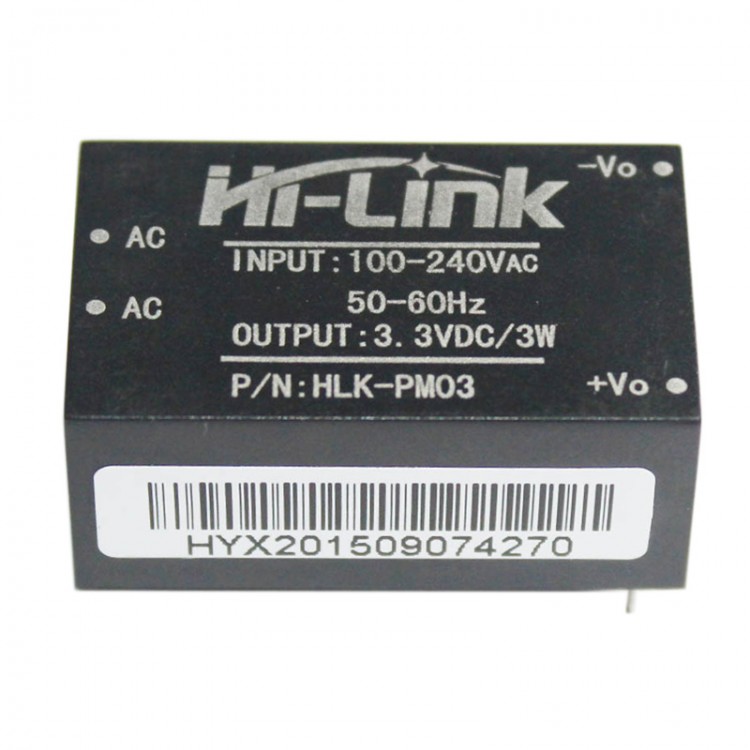

HLK-PM03 AC-DC 220V to 3.3V Mini Power Supply Module Intelligent Household Switch Power Module

HLK-PM03 AC-DC 220V to 3.3V Mini Power Supply Module Intelligent Household Switch Power Module

Product features:
1. Ultra-thin, subminiature
2. Full voltage input (90 ~ 264 vac)
3. Low ripple and low noise
4. Output overload short circuit protection function
5. High efficiency and power density
6. Product design to meet the EMC and safety testing requirements
7. Low power consumption, green environmental protection, no-load loss < 0.1 W
Aging and
8.100% load test
9. Meet the requirements of UL, CE,

Environmental conditions:
- Working temperature: - 20-60 +degree C
- Storage temperature: + 80-40 -degree C
- Relative humidity: 5-95.%
- The cooling way: Natural cooling
- The atmospheric pressure: 80-106Kpa
- The altitude :2000M or less
- Vibration coefficient of 10 ~ 500 hz, 2 g10min. / 1 cycle, 60 min. Each along the X, Y, Z axes

Electrical characteristics:
- The rated input voltage:100-240.VAc
- The input voltage range:90-264.VAc
- Maximum input current: <=0.2 A
- Input surge current: <=10 A.
<=Maximum input voltage: <=270 VAc
<=Input soft start: <=50 MS
- Efficiency of low input voltage: Vin = 110 vac, output with 69% or more
- High input voltage: Vin = 220 vac, output with 70% or more
- Long-term reliability:MTBF 100000 H or more.
- No load rated output voltage: + 5 + / - 0.1 VDc
- Full rated output voltage: + 5 + / - 0.2 VDc
- Short time maximum output current: >= 1000 ma
- The maximum output current for a long time: >= 600 ma
- Voltage regulation: + / - 0.2 %
- Load regulation: + / - 0.5  %
- The output ripple and noise: (mVp - p) 50 or less
The rated input voltage and output load.With 20 MHZ bandwidth oscilloscope,
Load and 10 uF and 0.1 uF capacitance test. The MV
- Switch machine overshoot(rated input voltage, output and 10% load) 5% VO or less
- Output over-current protection
- Output the maximum load of 150-200%A
- Output short circuit protection: Directly to the output of the normal short circuit, short circuit automatically resume normal work after removal

Safety features:
The product design as to meet the requirements of UL, CE safety certification.

Safety and electromagnetic compatibility:
- The input design USES UL 0.5 A insurance;
- PCB board made of double-sided copper-clad boards material is 94 - where V0 fire rating level;
- Safety standards in accordance with UL1012 EN60950, UL60950
- Insulation voltage I/P - O/P: 2500 vac
- Insulation resistance I/P - O/P > 100 m Ohms / 500 VDC 25 degree 70% RH
- Conduction and radiation in line with the EN55011, EN55022 (CISPR22)
- Electrostatic discharge IEC/EN 61000-4-2 level 4 8 kv / 15 kv
Radiofrequency radiation immunity IEC/EN 61000-4-3 can be found in the application

Safety design temperature:
- At normal temperature on our power capacitor, main converter so on surface temperature does not exceed 90 degree; the largest
- The shell surface maximum temperature does not exceed 60 degree;

Package included:
- 1 xPower Supply Module
