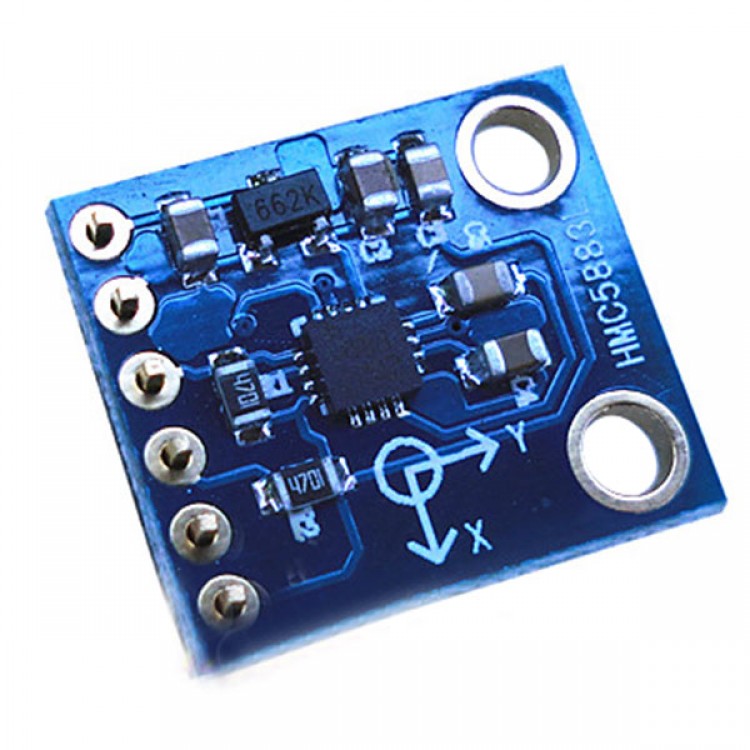

HMC5883L Electronic Compass Module 3 Axis Magnetic Resistance Sensor

Availability: In stock, usually dispatched in 1 business day

  • Price:$2.50
  • Price in reward points: 25
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $2.45 $2.40 $2.33 $2.23 Contact US
Quantity:
  This product has a minimum quantity of 5

HMC5883L Electronic Compass Module 3 Axis Magnetic Resistance Sensor

Description:

- Digital output: 2C digital output interface
- Small dimension, LCC encapsulation
- High precision: 1-2 degree, built in 12 bit A/D, OFFSET,  SET/RESET circuit, magnetic saturation phenomenon wiill not happen
- Support automatic calibration procedure
- Built in self testing programme
- Low consumption, 1.8V power supply, 2.5mA, 0.1mA testing mode
- Main application: smart phone, watch, compass, car electricity

Specification:
- Dimension:16mm*18mm
- Power supply:3.3V or 5V
- Row pin spacing: 2.54mm(100mil)
- This board intergrated all the resistor and capacitor HMC5883L needs, only need to externally  connect with ground, SDA, SCL cable
- Providing testing code, schematic diagram, manual
- Pins are not welded
