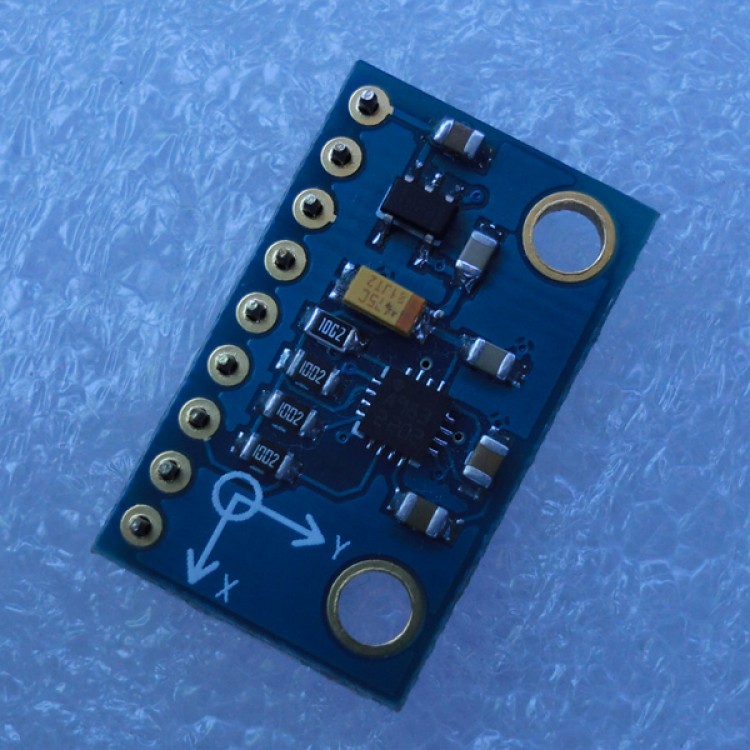

HMC5983 3-Axis IIC/SPI Digital Compass IC Module w/ Temperature Compensation

Description:
- Honeywell Microelectronics & Precision Sensors
- The Honeywell HMC5983 is a temperature compensated three-axis integrated circuit magnetometer. This surface-mount, multi-chip module is designed for low-field magnetic sensing for applications such as automotive and personal navigation, vehicle detection, and pointing. The HMC5983 includes Honeywell's state-of-the-art, high-resolution HMC118X series magnetoresistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1deg to 2deg compass heading accuracy. The I²C or SPI serial bus allows for easy interface. The HMC5983 is a 3.0x3.0x0.9mm surface mount 16-pin leadless chip carrier (LCC).
- The HMC5983 utilizes Honeywell' s Anisotropic Magnetoresistive (AMR) technology that provides advantages over other magnetic sensor technologies. Honeywell's anisotropic, directional sensors excel in linearity, low hysteresis, null output and scale factor stability over temperature, and with very low cross-axis sensitivity. These sensors' solid-state construction is designed to measure both the direction and the magnitude of magnetic fields, from milli-gauss to 8 gauss. Honeywell's Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry.

Features:
- Small size for Highly Integrated Products. Just add a microcontroller interface, plus two external SMT Capacitors designed for high volume, cost sensitive OEM Designs
- Easy to assemble and compatible with High Speed SMT Assembly
- Automatically maintains sensor's sensitivity under wide operating temperature range
- Maximizes sensor's full dynamic range and resolution
- Enables Pedestrian Navigation and LBS Applications
- Built-in Self Test
- Built-In Strap Drive Circuits
- Automatic Offset Compensation

Specifications:
- Axis:X, Y, Z
- For Measuring:Strength, Direction of Magnetic Field
- Interface:I²C, SPI
- Measuring Range:± 1 ~ 8 Gauss
- Package / Case:16-LPCC
- Resolution:2 mGauss
- Type:Digital Compass
- PCB size:15mm*24mm

Package including:
- 1 x HMC5983 3-Axis IIC/SPI Digital Compass IC Module w/ Temperature Compensation
