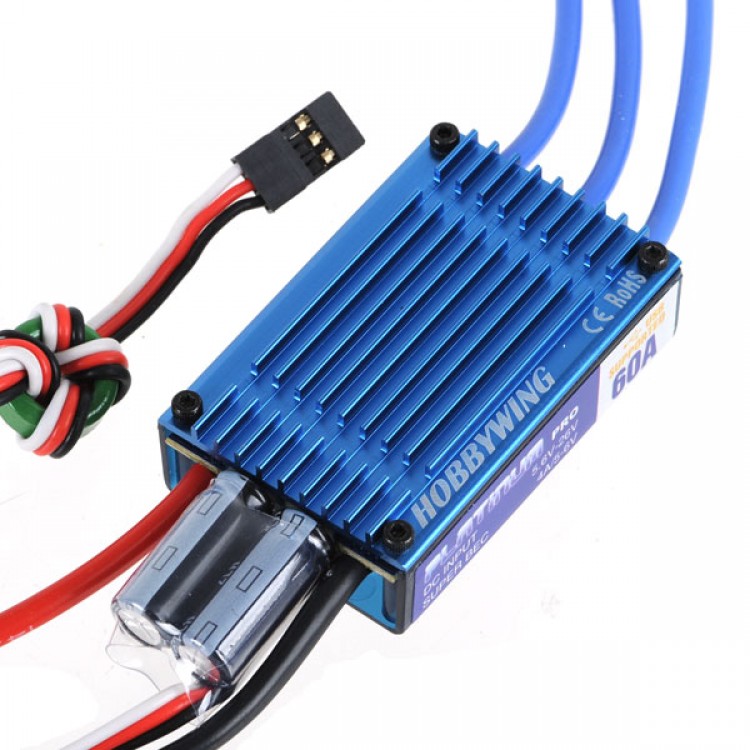

Hobbywing 60A Platinum-60A ESC RC Aircraft Helicopters
Features:
- High performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- Wide-open heat-sink design to get the best heat dissipation effect.
- With 3 types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
- The output voltage of the built-in BEC is switchable by user programming (5.25V or 6.0V).
- Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection
- Perfect governor mode for helicopter.
- The firmware of the ESC can be updated through the USB adapter on the Professional LCD Program Box.
- User programmable. Several kinds of program methods are supported: transmitter, digital LED program card, advanced professional LCD program box, PC software. Very easy to program the ESC at home or at the flying field.
Specification
- Output:  Continuous 60A, burst 90A up to 10 seconds.
- Input Voltage:  2-6 cells lithium battery or 5-18 cells NIMH battery.
- BEC:  Switching mode DC-DC regulator.  3A or 5.25V or 3A or 6V switchable by user progromming.
- Control Signal Transmission: Optically coupled system.
- Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
                               (BLM: BrushLess Motor)
- Size:  70mm (L) * 34mm (W) * 16mm (H).
- Weight:  68g.
Applications:
- Super powerful  for 450 class helicopter
- Very powerful for 500 class helicopter
- Very powerful for middle scale aircraft
