|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$173.84||$170.29||$164.97||$157.88||Contact US|

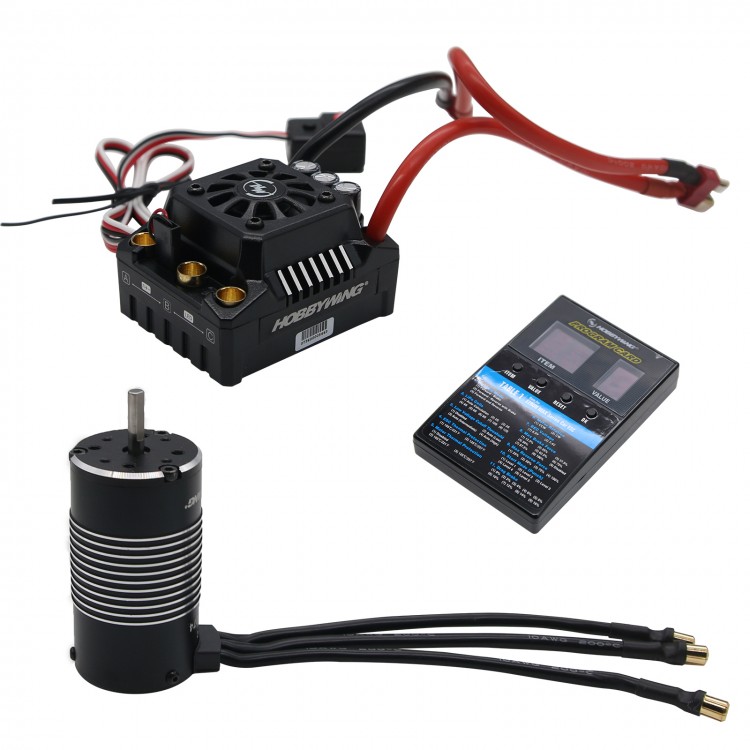

Hobbywing EzRun Max8 V3 150A Brushless ESC T Plug with Motor 4274 2200KV Program Card for RC Car
- ESC is compatible with sensorless brushless motors and sensor ed brushless motors (only in sensorless mode).
- Fully waterproof design for all weather conditions.
- Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a co nt ./peak current of 6A/15A for easily driving big tor que servos and high voltage servos.
- Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
- Separate programming port to easily connect the LED pr ogram card or the LCD pr ogram box to the ESC.
- Proportional brake with 9 levels of maximum brake for ce and 9 levels of drag brake for ce.
- 5 levels of acceleration/punch fr om soft to aggressive for different vehicles, tires and tracks.
- Capacitor Protectionï¼Innovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
- Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (thr ottle signal loss protection).
- Advanced programming via portable LED pr ogram card or multifunction LCD pr ogram box.
Hobbywing Ezrun MAX8 V3 150A ESC :
- Scale: 1/8th
- Brushless & Sensorless
- Size: 59.8x48.0x36.8mm
- Weight: 174g
- Cont./Peak Current: 150A/950A
- Input: 3-6S LiPo/9-18 Cells NiMH
- BEC Output:Switch Mode:6V/7.4V, 6A
- Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
- Output Wires: Black-10AWG-200mm*3
- Input Connectors: T Plug
- Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
- (Note: All the wire length above is the original length not the length you see from the outside.)
- Fan Size: 30.0x30.0x10.0mm
- Fan Voltage Range: 5-7.4V
- Fan Powered by: Powered by BEC
- Firmware Upgrade: Supported
- Applications Motors: SL BL Motors/SD BL Motors(only in SL mode);
- Applications Vehicles: 1/8th Touring Car/Buggy/Truck;
- KV Rating/T Count: 4S LiPo:KV≤3000;/6S LiPo:KV≤2400(40XX Series of Motors)
- ESC Programing Supported: SET Button on ESC, LED Program Box, LCD Program Box, WiFi Module
EzRun 4274 2200KV Motor Parameters:
- KV Rating: 2200
- LiPo Cells: 2-6S
- No-load Current(A): 5
- Max. Power Output(W): 3000
- Current at the Point of Max. Power Output(A): 120A
- O.D.(mm): 42.0(1.654in)
- Length (mm): 74.0(2.913in)
- Shaft Diameter (mm): 5.0(0.196in)
- Weight (g): 418(14.745oz
- Applications: 1/8th Monster Trucks/Trucks
- 1 x Ezrun Max ESC T-Plug
- 1 x Ezrun Max LED Program Card
- 1 x Ezrun 4274 SL Brushless Motor (2200kv)
- 1 x Instruction Manul
