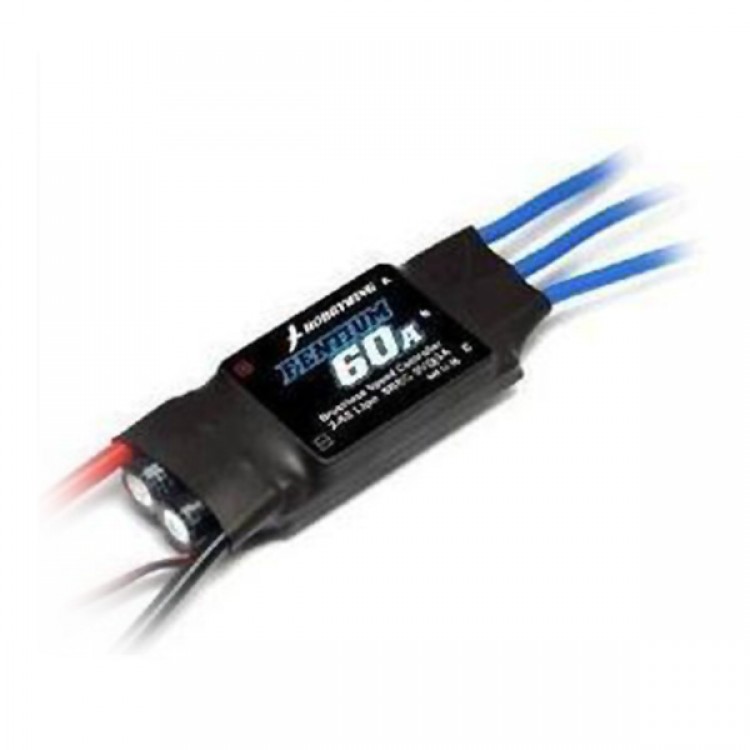

Hobbywing FlyFun Pentium 60A Built-in 3A BEC Brushless ESC For RC Aircraft & Helicopter
  • Hobbywing FlyFun Pentium 60A Built-in 3A BEC Brushless ESC For RC Aircraft & Helicopter

  • SKU:14144
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 4
  • Price:$36.90
  • Price in reward points: 369
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.16 $35.42 $34.32 $32.84 Contact US

Hobbywing FlyFun Pentium 60A Built-in 3A BEC Brushless ESC For RC Aircraft & Helicopter
Features:

- Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
-  Extreme low resistance PCB is used at the power output section, the whole ESC has super current endurance capability.
-  Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
- Compatible with Hobbywing's Program Card.
- Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
- Programmable Items:
        Brake Setting: brake enabled / brake disabled.
        Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
        Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
        Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
        Start Mode: normal / soft / very soft.
        Timing: low / medium / high.
        Reset:  reset  all  the programmable items to their default settings.
- Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.

Specification
- Output:  Continuous 60A, Burst 80A up to 10 Secs.
-  Input Voltage:  2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
-  BEC:
        FlyFun-60A: 3A / 5V (Switch mode).
        FlyFun-60A-OPTO: None.
- Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
                       (BLM: BrushLess Motor)
- Size:  70mm (L) * 31mm (W) * 14mm (H).
-  Weight:
        FlyFun-60A: 60g.
        FlyFun-60A-OPTO: 56g.
