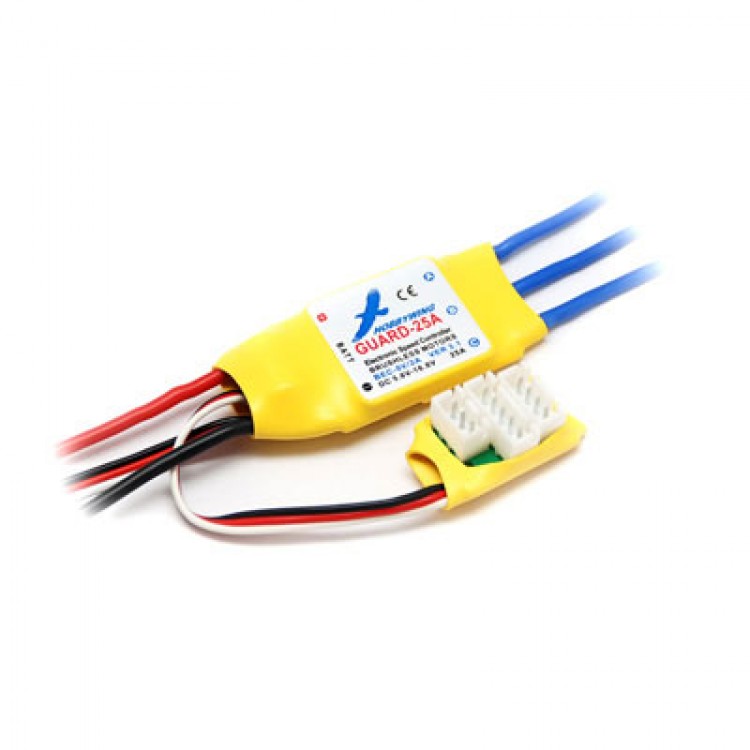

Hobbywing Guard-25A Brushless ESC for Aircraft and Helicopter
- Guard-25A is the product in the "Guard" series.
- It has a special feature that makes it very interesting and attractive.
- Lithium Battery Balance Discharge Monitoring and Protection Design
- This function is a great innovation. With this function, the "Guard" series ESC can monitor the discharge voltage of  EACH Li-xx (Li-ion/LiPo) cell in a battery pack at any time. So from now you needn't worry about the over-discharge problem for the weakest cell, the lithium battery pack will have a much longer life. This design helps you to reduce the cost for buying battery packs.
-  Output:  Continuous 25A, Burst 35A up to 10 Secs.
- Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NiMH battery.
- BEC:  2A / 5V (Linear mode).
-  Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
-  (BLM: BrushLess Motor) 1.5 Size:  45mm (L) * 26mm (W) * 12mm (H). 1.6 Weight:  27g.
- Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
- Programmable Items:        Brake Setting: brake enabled / brake disabled.
- Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
- Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- Reset:  reset  all  the programmable items to its default setting.
-  Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
- Balance Discharge Monitoring and Protection Adapter (BDMP Adapter) We provides 2 types of BDMP adapters for user to choose.
