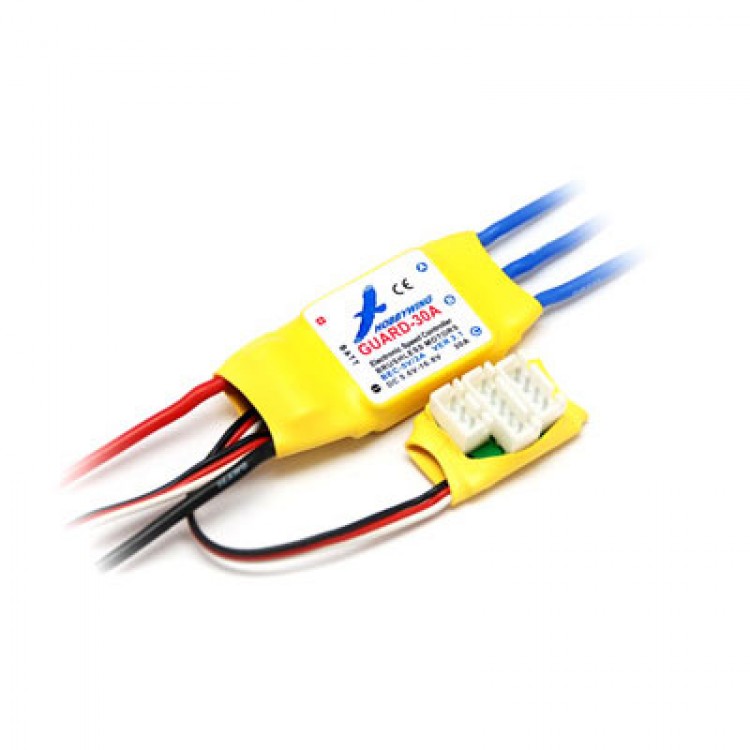

Hobbywing Guard-30A Brushless ESC for Aircraft and Helicopter
  • Hobbywing Guard-30A Brushless ESC for Aircraft and Helicopter

  • SKU:23438
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$28.68
  • Price in reward points: 287
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.11 $27.53 $26.67 $25.53 Contact US

Hobbywing Guard-30A Brushless ESC for Aircraft and Helicopter
Description:
- Guard-30A is the product in the "Guard" series.
- It has a special feature that makes it very interesting and attractive.
- Lithium Battery Balance Discharge Monitoring and Protection Design
- This function is a great innovation. With this function, the "Guard" series ESC can monitor the discharge voltage of  EACH Li-xx (Li-ion/LiPo) cell in a battery pack at any time. So from now you needn't worry about the over-discharge problem for the weakest cell, the lithium battery pack will have a much longer life. This design helps R/C fans to reduce the cost for buying battery packs.
Specification
- Output:  Continuous 30A, Burst 40A up to 10 Secs.
- Input Voltage:  2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
- BEC:  2A / 5V (Linear mode).
- Max Speed:  210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor)
- Size:  45mm (L) * 26mm (W) * 12mm (H). 1.6 Weight:  29g.
 Features
- Safety Arming Feature:  Regardless the throttle stick position, the motor will not spin after battery connected.
- Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
- Programmable Items:
- Brake Setting: brake enabled / brake disabled.
- Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).
- Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
- Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
- Start Mode: normal / soft / very soft.
- Timing: low / medium / high.
- Reset:  reset  all  the programmable items to its default setting. 2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
Advantages
- Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
- Extreme low resistance PCB is helpful to get the best current endurance capability.
- Microprocessor uses separate voltage regulator IC, with good anti-jamming capability
- Compatible with Hobbywing's
