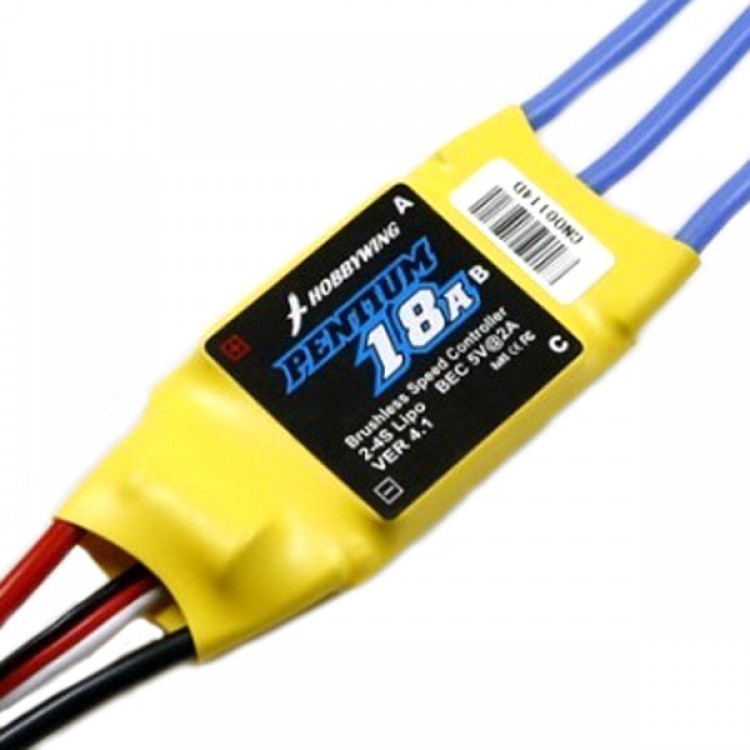

Hobbywing Pentium 18A Brushless Speed Controller ESC  with 2A UBEC (HW18A) 4-Pack
  • Hobbywing Pentium 18A Brushless Speed Controller ESC with 2A UBEC (HW18A) 4-Pack

  • SKU:17177
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 7
  • Price:$70.33
  • Price in reward points: 703
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $68.92 $67.52 $65.41 $62.59 Contact US

Hobbywing Pentium 18A Brushless Speed Controller ESC  with 2A UBEC (HW18A) 4-Pack
Descriptions:
- Both for rc helicopter and rc airplanes
Descriptions:
Pentium-18A is the product in the "PENTIUM" series.

1.1 Output: Continuous 18A, Burst 22A up to 10 Secs.
1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery.
1.3 BEC: 2A / 5V (Linear mode).
1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
             (BLM: BrushLess Motor)
1.5 Size: 45mm (L) * 24mm (W) * 11mm (H).
1.6 Weight: 19g.


Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
2.3 Programmable Items:
             Brake Setting: brake enabled / brake disabled.
             Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
             Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.
             Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
             Start Mode: normal / soft / very soft.
             Timing: low / medium / high.
             Reset: reset all the programmable items to their default settings.
 2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection..


Advantages
- 3.1 Military standard capacitor of extreme low resistance increases the ability of prevention of unwanted RF noise during flying.
- 3.2 Extreme low resistance PCB is helpful for getting a super current endurance capability.
- 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
- 3.4 Compatible with Hobbywing's Program Card
