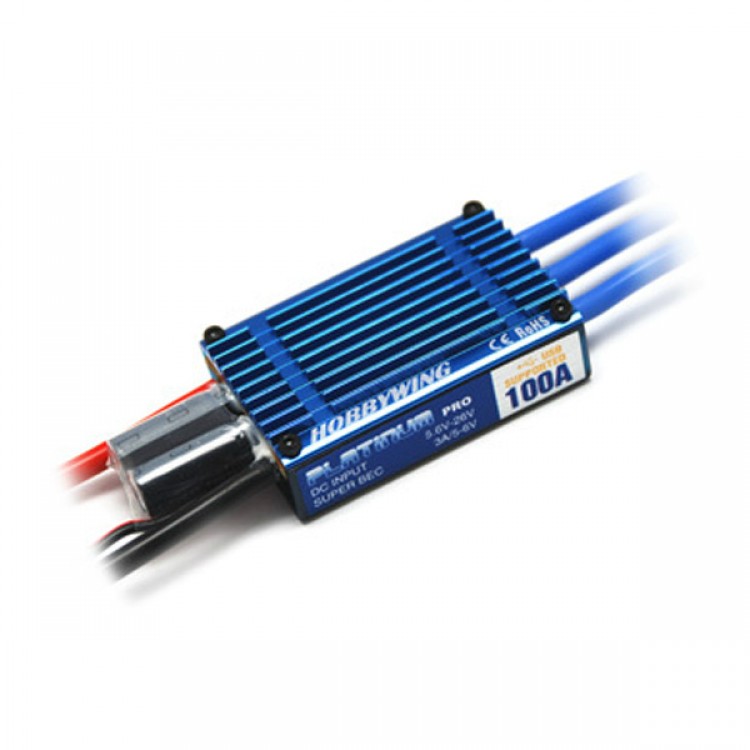

Hobbywing Platinum 100A Pro ESC w/ 5.25V/6V BEC for RC Aircraft EDF Jets Helicopter 6S

Features
- High performance microprocessor, best compatibility with all kinds of motors, highest driving efficiency.
-  Three types of start mode: Normal / Soft / Very-Soft, compatible with aircraft and helicopter.
- Smooth, linear, quick and precise throttle response.
-  Multiple protection features: Low-voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- The throttle signal is transfered through optical/electrical coupled system to avoid electromagnetic interference.
-  Perfect governor mode for helicopter.
-  Wide-opened heat-sink has the best heat dissipation effect.
-  The firmware of the ESC can be updated through the built-in USB adapter in the Professional LCD Program Box.
- User programmable.
-  Multiple program methods supported: transmitter stick, Digital LED Program Card, Professional LCD Program Box, PC software. Very easy to program the ESC at home or at the flying field.

Specification
- Output:  Continuous 100A, burst 150A up to 10 seconds.
-  Input Voltage:  2-6 cells lithium battery or 5-18 cells NiMH battery.
- BEC:  4A, 5.25V or 6V switchable by software.
-  Control Signal Transmission: Optical/electrical coupled system.
-  Max Speed:  210000rpm for 2 Poles BLM, 70000rpm for 6 poles BLM, 35000rpm for 12 poles BLM.(BLM = BrushLess Motor)
-  Size:  70mm (L) * 34mm (W) * 16mm (H).
- Weight:  82g.
