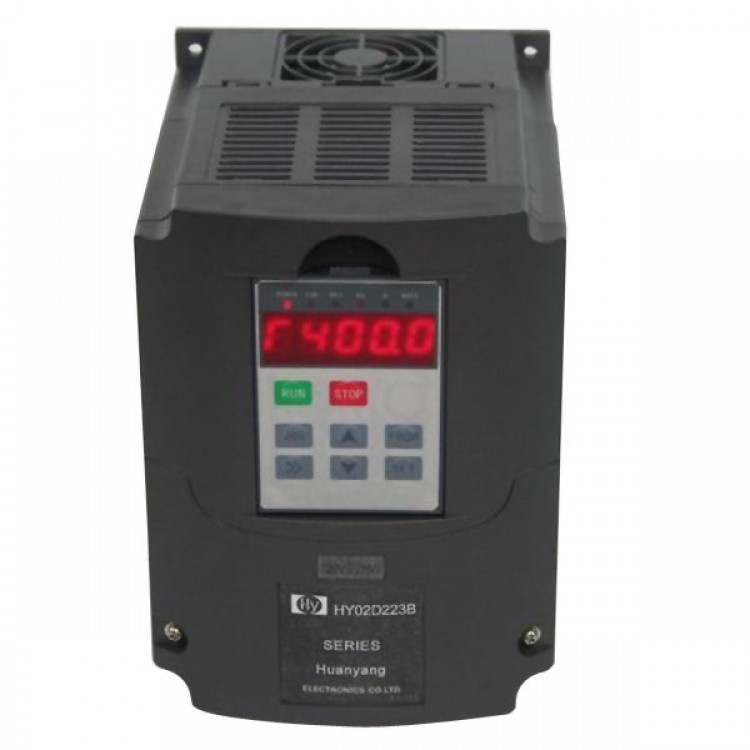

HY02D243B HY Series Usual Inverter VFD Inverter 380V 2.2kw 6A

HY series usual inverter features:
- PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
- Easy PLC function can realize 16 legs of speed and inverter control function
- RS485 communication port, adopting standard international MODBUS main circuit control
- With extremely strong anti-jamming capability
- Low output ratting torque0.5HZ-150%, low speed running ability
- Carrier adjustable by 16KHZ, completely soundless working environment
- Broad voltage working area, normal running in 304V-456V
- Auto voltage regulation (AVR) technique, for ensuring the inverter load capability
- Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes
- With perfect error protection and short circuit starting protection capability

- Model: HY02D243B
- Voltage: 380V
- Power: 2.2Kw
- Electric current: 6A
- Product size: 168×124× 161mm
- Net Weight(kg): 1.6kg


HY inverters

Control Mode


Input Power

380V class:380±15%;230V class:220±15%

5-Digits Display & Status Indicator Lamp

Displaying frequency, current, revolution, voltage,

counter, temperature, FOR or REV rotation, and fault, etc.

Communication Control


Working Temperature



0-95% Relative Humidity(without dew)


Below 0.5G

Frequency Control




Digital: 0.1%(-10~40℃); Analog: 0.1% (25±10℃)

Setting Resolution

Digital: 0.1Hz; Analog: 1‰ of max. Operating frequency

Output Resolution


Operator Setting Method

Press directly ← ∧ ∨ to set.

Analog Setting Method

External Voltage 0-5V,0-10V,4-20mA,0-20mA.

Other Functions

Frequency lower limit, starting frequency, stopping frequency,

three skip frequencies can be respectively set.

General Control

Ramp Control

Selectable 4-speed steps ramp-up and -down time (0.1-6500s).

V/F Curve

Set V/F curve at will.

Torque Control

Torque increase settable by max. 10.0%. The starting torque

can reach 150% at 1.0Hz.


6 multifunction input terminals for 8–speed steps control,

program operation,switchingof 4-speedRamp, UP/DOWN function,

counter, external emergency stop and other functions.


5 multioutput for displaying of running, zero speed, counter,

external abnormity, program operation and other information and warnings.

Other Functions

Auto Voltage Regulation(AVR), Decelerating Stop or Coasting Stop,

DC Braking, Auto Reset and Restart, Frequency Track, PLC Program Control,

Traverse Control, Drawing Control

Auto Energy Saving, Carrier Adjustable (Up to 20KHz), etc.

Protection Functions

Overload Protection

Electronic relay protection motor drive

Drive(for constant torque  150%/1 min. for the kinds of fan 120%/1min.)

Fuse Protection

When the fuse breaks , the motor will stop.


220V class:DC Voltage >400V

380V class:DC Voltage >800V


220V class:DC Voltage <200V

380V class:DC Voltage <400V

Restart After Instant Stop

Restart with Frequency Track after Instant Stop

Stall Protection

Stall protection in ramp operation

Output Short Circuit

Electrical circuit protection

Other Functions

Fin over-heat protection, restriction of reverse running, direct start after

power on, fault reset, parameter lock PID, one-drive-more, etc.
