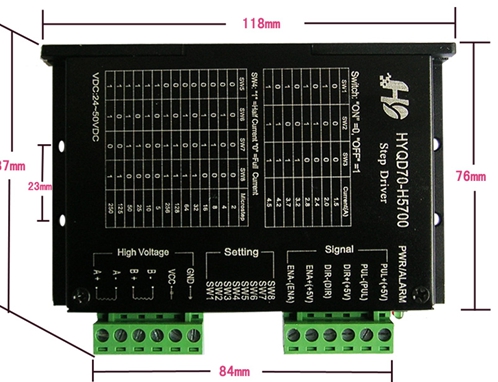

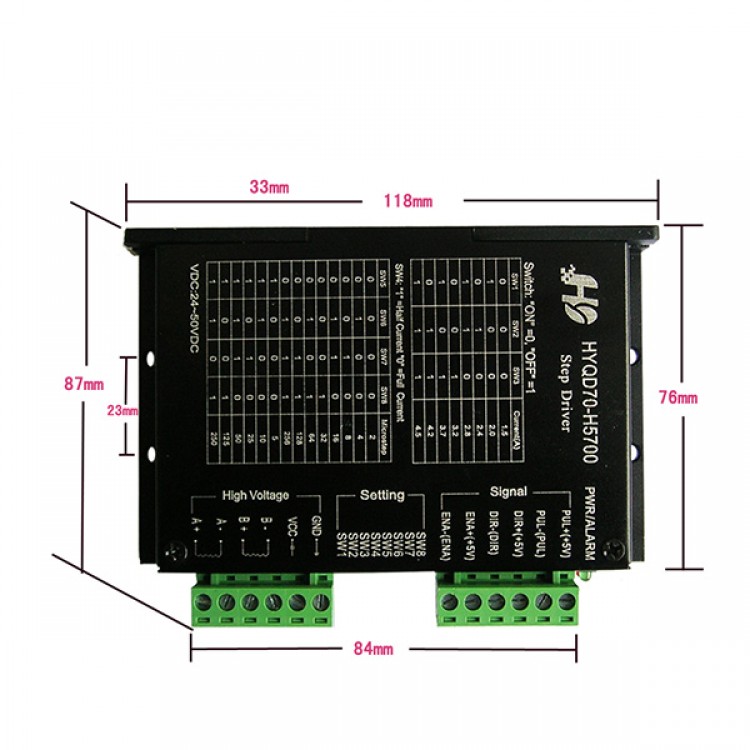

HYQD70 Stepper Motor Driver 4.5A 60V 128 Segments Driver for 57 86 Stepping Motor
Description:
- This driver uses the discrete component structure,2 pahse,and 4 wire,6 wire,8 wire all compatible
- Suitable for 57 series ,4.5A or lower stepper motor
Features:
- The input signal light isolation
- 20 KHZ chopper frequency
- Bipolar constant current chopping mode
- Working voltage:24-60V
- Max driver current:4.5A/phase
- Adjustable output current dial the code switch
- Input signal TTL compatible, acceptable difference signal input at the same time
- Resting automatically into half a flow mode, reduce drive and electric heating
- Precision segment:2,4,8,16,32,64,128,256. 5,10,20,25,40,50,100,200
- High reliability: after a long period of testing, to ensure the stability of power device choice allows sufficient margin
Package list:
- 1 x HYQD70 Stepper Motor Driver 4.5A 60V 128 Segments Driver for 57 86 Stepping Motor
