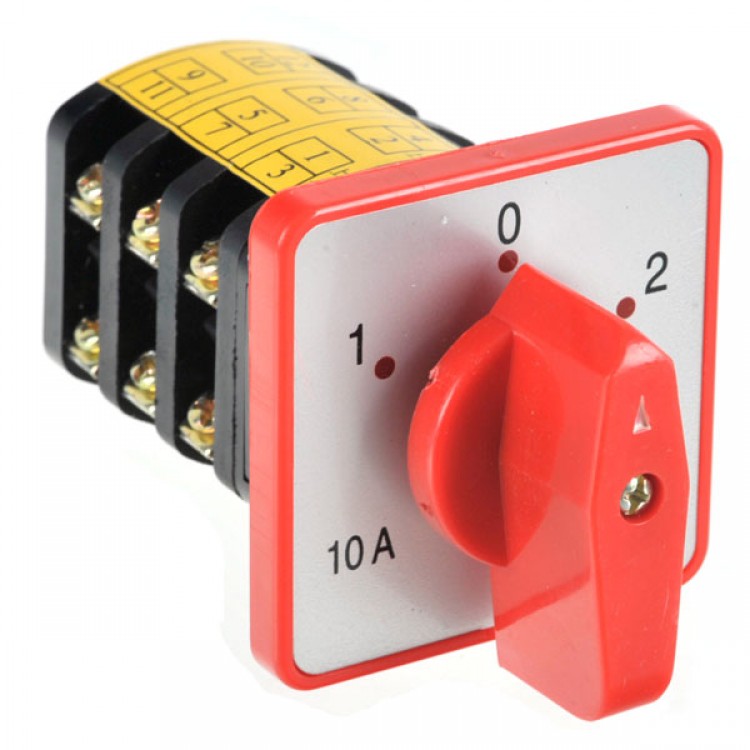

HZ5D-10/1.7 10A M05 Motorized Changeover Switch Combination Switch Convert Switch 1.7KW 380V
Features:
High quality,high breaking capacity,quick trip and guide installation,competitive price,excellent and safe performance, updated structure,beautiful and compact appearance,good operation, etc .
Application:
HZ5D series switch is mainly used in ac 50 Hz ac rated voltage 380 V and below and rated current to 63 A line in the power switch starting, reversing, variable speed switch, also used in the conversion of the control circuit.
Specfications:
|
Model |
Ith A |
Ui V |
Ue V |
Ie A |
P kW |
AC-23A number of operated cycle |
Electrical life |
Operation frequency/h |
||
|
Loaded |
Unloaded |
All |
||||||||
|
HZ5D-10 |
10 |
380 |
380 |
4 |
1.7 |
51×104 |
9×104 |
60×104 |
20×104 |
120 |
|
HZ5D-20 |
20 |
8 |
4 |
|||||||
|
HZ5D-40 |
40 |
16 |
7.5 |
15×104 |
||||||
|
HZ5D-63 |
63 |
24 |
10 |
6×104 |
4×104 |
10×104 |
10×104 |
|||
|
Model |
Size |
|
HZ5D-10 |
(32+14n)*38*60 |
|
HZ5D-20 |
(34+13n)*38*60 |
|
HZ5D-40 |
(40+16n)*38*75 |
