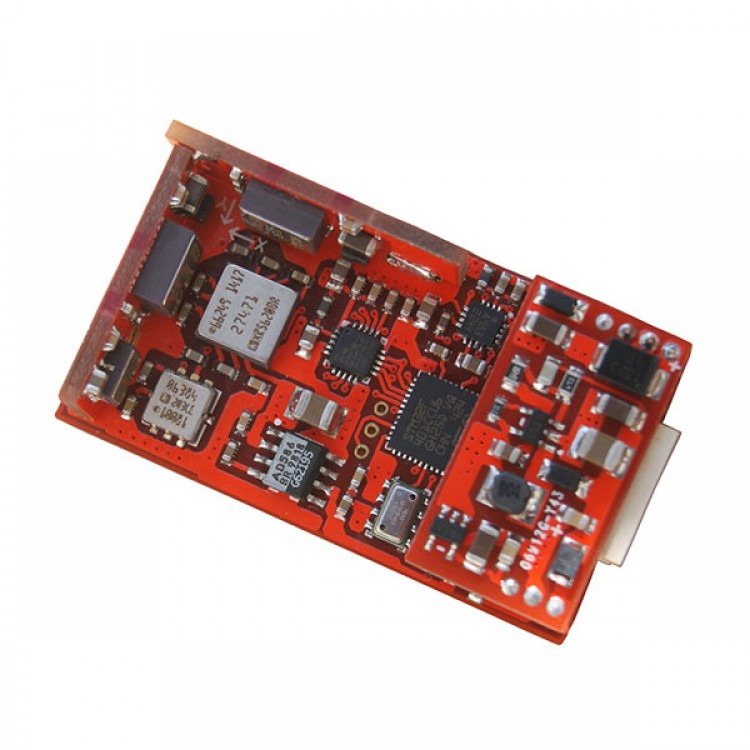

I9DOFv3 Sensor Module ADXRS620 ADXL203 5983 High Performance and High Precision AHRS Module
Description:
- I9DOFV3, evolved from V2.Sensors are still continue to use the mainstream of ADI high-performance angular velocity ADXRS620 and accelerometer ADXL203.Magnetometer chip USES HMC5983, compared with 5883 for faster data update rate, and temperature compensation function.At the same time, I9DOFV3 introduces a high precision pressure MS5611 chip.
- I9DOFV3 support more wide input voltage, 3.3 V to 6 V, can for the power supply module.Barrier-free quickly embedded in your system.Module output TTL level of UART serial interface, can be connected directly to the vast majority of the CPU pins.
- I9DOFV3 adopted the M4 kernel STM32F401CC, faster clock and data processing, the M4 kernel DSP processing ability, can carry out the implementation of FIR and IIR filter algorithm.Make the system expansion ability is stronger.
Physical properties:
1. The input voltage of 3.3 V to 6 V 50 ma @ 5 V
2. The level of UART interface for TTL3.3 V
3. The ability to resist shock: 2000 g
4. The ADC maximum update rate: 250 KSPS
