ICEPOWER 2x125W HIFI Amplifier Board ICE125ASX2 Dual Channel Digital Amp Module

Tags: ICEPOWER 2x125W

Availability: In stock, usually dispatched in 1 business day

  • Price:$245.18
  • Price in reward points: 2452 Reward Points: 25
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $240.28 $235.37 $228.02 $218.21 Contact US
Quantity:

ICEPOWER 2x125W HIFI Amplifier Board ICE125ASX2 Dual Channel Digital Amp Module


Note: SE mode,no volume adjust.

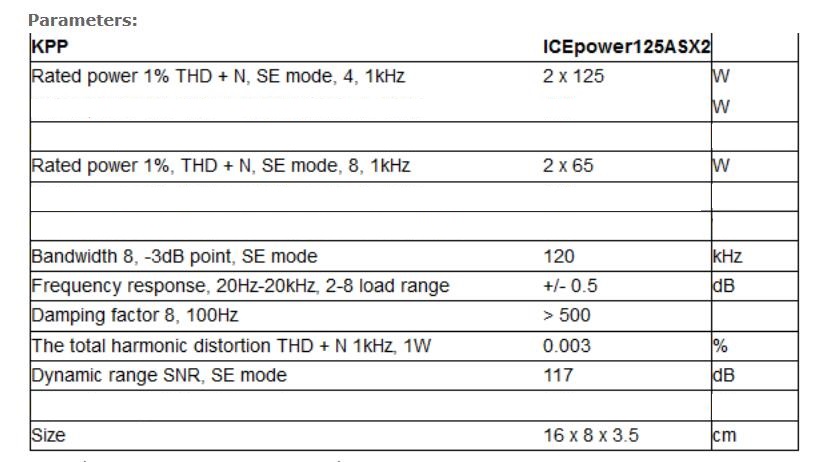

Specification:
- ICEpower125ASX2
- Rated power:1% THD+N,SE mode,4ohm,1kHz2 x 125W
- Bandwidth:8ohm,-3dB point,SE mode120kHz
- Frequency response:20Hz-20kHz,2ohm-8ohm load range+/- 0.5dB damping factor 8ohm,100Hz>500
- Total harmonic distortion:THD+N 1kHz,1W0.003%
- Dynamic range SNR,SE mode117dB Dynamic range SNR.


Parameters:
- Rated power output: L, R:115W@4Ohm
- Frequency response: L, R:20Hz~20KHz (+ 1dB)
- Input sensitivity: 40mV
- Rated load impedance: 4~8 Ohm.
- Overload source electromotive force:>=2V
- Harmonic distortion + noise (nominal working conditions and a decrease in the output 26dB, 20Hz~20KHz) L, R< = -40dB
- Mute signal-to-noise ratio (A weight): L, R = 90dB
- Degree of separation (normal working conditions, L, R): 45dB
- Rated voltage: 220V
- Frequency: 50Hz
- In the normal working conditions of power: less than 300W
- Working conditions - rated power: less than 320W
- Size: 280X330X90 (mm)
- Weight: 3.4Kg
- Outer dimensions: (w) 162*(h) 62 *(d) 261 MM

Package List:
- 1 x HIFI Amplifier
