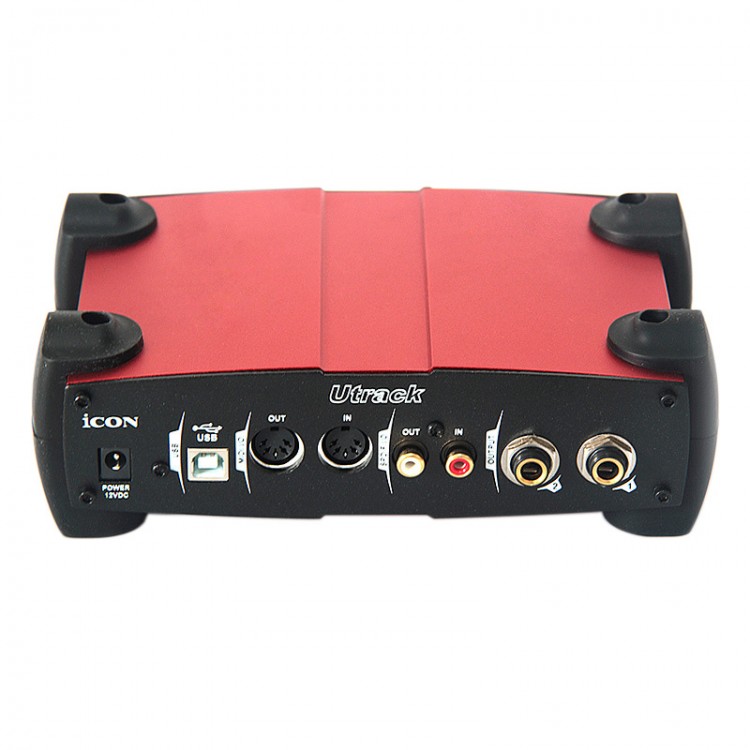

ICON Utrack Sound Card 4-In 4-Out Support Direct Sound WDM ASIO GIGA Studio for Recording Network

ICON Utrack Sound Card 4-In 4-Out Support Direct Sound WDM ASIO GIGA Studio for Recording Network

Features:
- 24bit96 / 192kHz2 into 2out analog balanced interface, USB data transfer (input sampling 96kHz output sample 192 kHz)
- 2* low-noise mic / instrument preamps with independent gain adjustment, 48V phantom power and gain effective
- 2*analog inputs and two analog outputs using 1/4 "TRS Interface
- S / PDIF coaxial RCA input / output interface
- 1 independent stereo headphones with volume control output
- Regulator controls panel directly on the PC
- In the software control panel 2 inputs can be sent to any two outputs
- 16 Channel 1 in 1 out MIDI interface
- USB2.0
- Supports Direct sound, WDM, ASIO2.0 and GIGA studio
- comprehensive, simultaneous recording / playback functions

Product Specifications:
- Signal output 1/2 (TRS):
- Frequency Response: 22Hz-22kHz (+/- 0.1dB)
- Dynamic range: 102dB, A- weighted
- SNR: -102dB, A- weighted
- Total harmonic distortion plus noise: <0.003% (-90 dB)
- Crosstalk: -100dB 1kHz
- nominal output level: Balance: + 4dBu
- nominal output level: Unbalanced: -10dBV
- The maximum output level: Balance: + 10.2dBu, typical
- The maximum output level: Unbalanced: + 2.0dBV, typical
- Output Impedance: 150Ohm
- Load Impedance: 600Ohm minimum

Headphone output: 1 (at maximum volume load 100):
- Frequency response: 22Hz to 22kHz (+/- 1dB)
- Power: 90mW / 100Ohm
- total harmonic distortion plus noise: <0.06% (-66dB)
- SNR: -90dB, A- weighted
- maximum output level /100:+2.0dBV, typical
- Output Impedance: 75Ohm
- Load Impedance: 32- 600Ohm

- Weight: 1.3kg
- Size: 200 x 140 x 70 mm

Note:
Loading racks for computer performance, when below the configuration requirements, may cause intermittent sound effects, noise, sonic boom or card machine phenomenon. Recommended System Performance Requirements: Intel dual-core CPU; memory: 2G or more.

Package included:
- 1 x Sound Card
