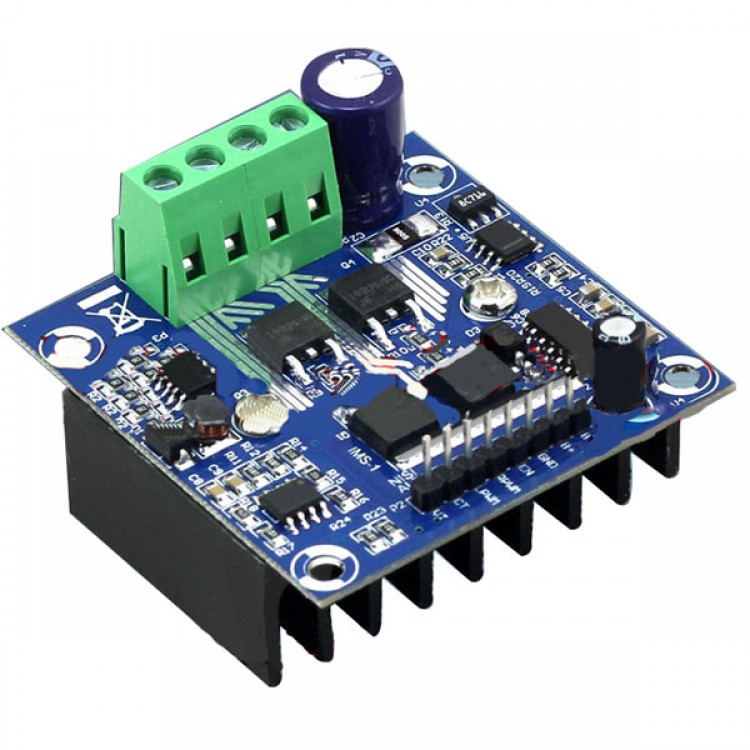

IMS-1/Arduino 50A Single Channel Super H Bridge Driver Module CW CCW Strong Braking
Description:
- This large power driver is suitable for driving
- Hollow cup motor
- DC motor
- Semiconductor refrigeration module
- Electromagnetism valve
- Electromagnetism coil
Parameters:
- Rated volatge: 3-15V
- Max voltage: 5-30V
- Rated current: 50A(MAX)
- Peak current : 1100A(MAX)
- Switch frequency: 1-200KHz
- PWM duty ratio: 0-98%
- Dimension: L: 5.0CM, W: 5.0CM, H: 3.1CM
- Installation holes space: 40*44MM
