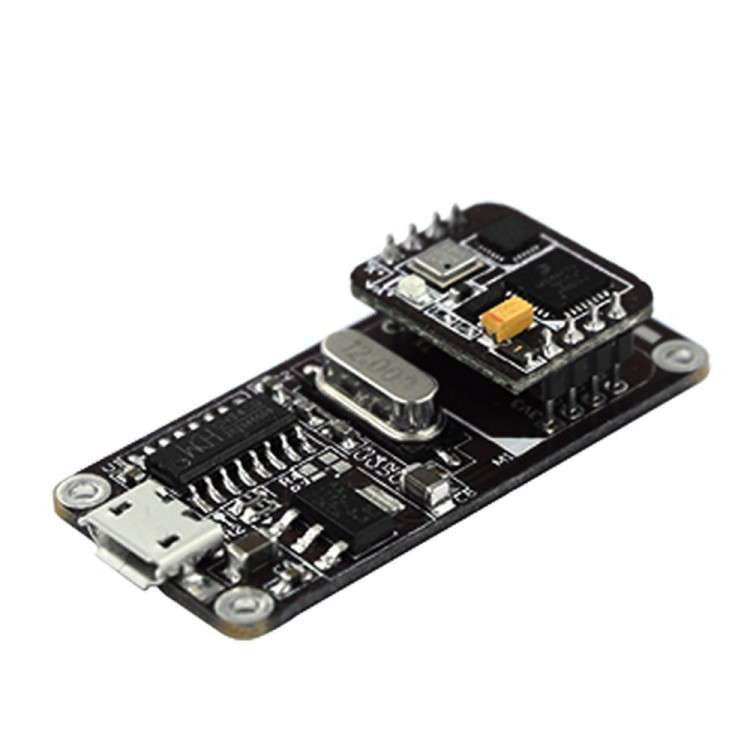

IMU 9 Axis Sensor Inclination Attitude Module 9250 AHRS Seriel Port Output Compass
Specification:
- Name: 9-Axis Attitude Module
- Module size: 14*17mm
- Pin spacing: 2mm Longitudinal, 15.24mm Lateral
- Data otuput interface:
- Level feature:LVCMOS25-LVTTL36
- Output data type: Attitude angle: Roll angle,Pitch angle,Absolute heading angle,original data: 3-axis acceleration,3-axis angle Geomagnetic,Pressure data
- Data otuput speed: 0-800Hz
- Seriel port output speed: 115200 (max.921600)
- Data resolution: Roll angle:-+0.01degree,Pitch angle:-+0.01degree,Absolute heading angle +0.5degree
- Instruction set: AT
- Encapsulation: through-hole
Features:
- Support AT instructions
- Can change the data output speed range 0-800Hz
- Module can outputs he attitude angle information,and use the original data for the second development
- User can set the exclusive ID
- Upgrade the module firmware or not by user
- Support vertical or horizontal installation
- Support Windows,ubuntu system
More information download: Click here
Upgrade Firmware instruction: Click here
Package inlcuded:
-1 x IMU 9 Axis Sensor Inclination Attitude Module
